26602100

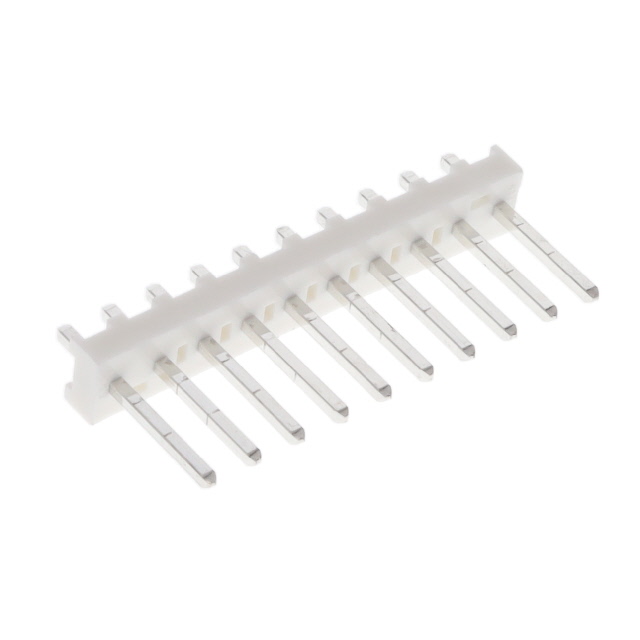

CONN HEADER VERT 10POS 3.96MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 10 position 0.156"" (3.96mm)
Additional Information
Series: KK396, 41771RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | - |
| Insulation Color | Natural |
| Pitch - Mating | 0.156"" (3.96mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.130"" (3.30mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | 0.720"" (18.29mm) |
| Insulation Material | Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.450"" (11.43mm) |
