194270040

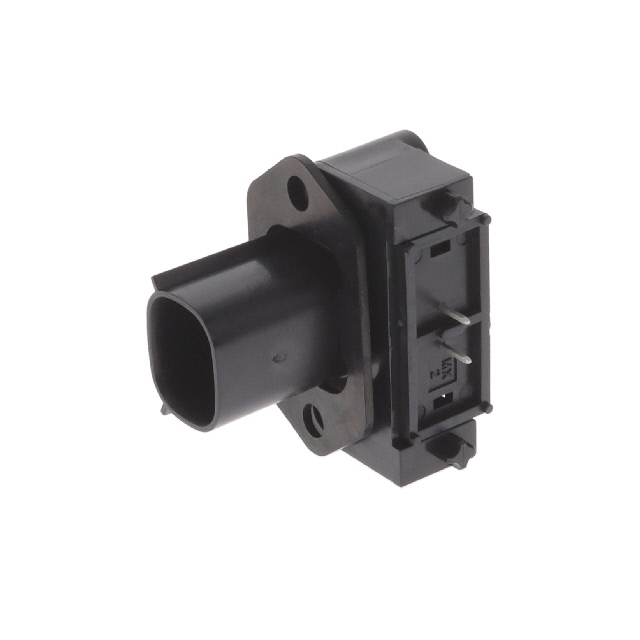

CONN HEADER R/A 2POS 5.84MMManufacturer: Molex
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Panel Mount, Through Hole, Right Angle 2 position 0.230"" (5.84mm)
Additional Information
Series: MX150L 19427RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.230"" (5.84mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.134"" (3.40mm) |
| Insulation Height | 1.147"" (29.13mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
