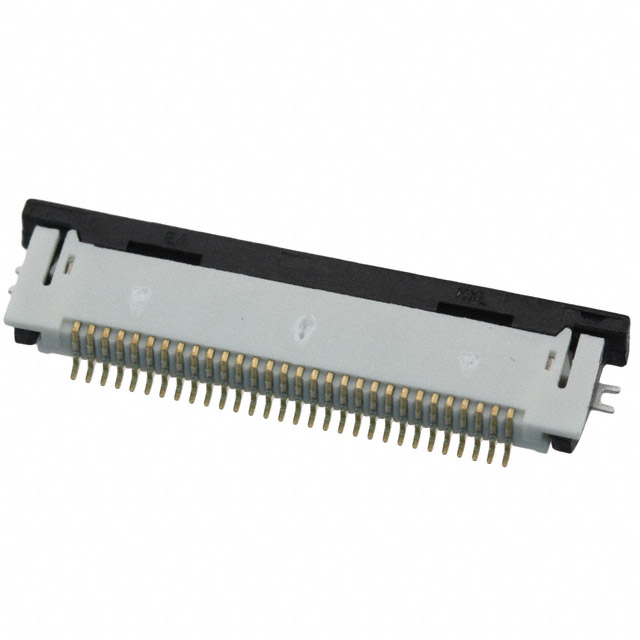

541323062
CONN FFC BOTTOM 30POS 0.5MM R/AManufacturer: Molex
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
30 Position FFC, FPC Connector Contacts, Bottom 0.020"" (0.50mm) Surface Mount, Right Angle
Additional Information
Series: Easy-On 54132RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.020"" (0.50mm) |
| Operating Temperature | -20°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.079"" (2.00mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Cable End Type | Straight, Tapered |
| Flat Flex Type | FFC, FPC |
| Connector/Contact Type | Contacts, Bottom |
