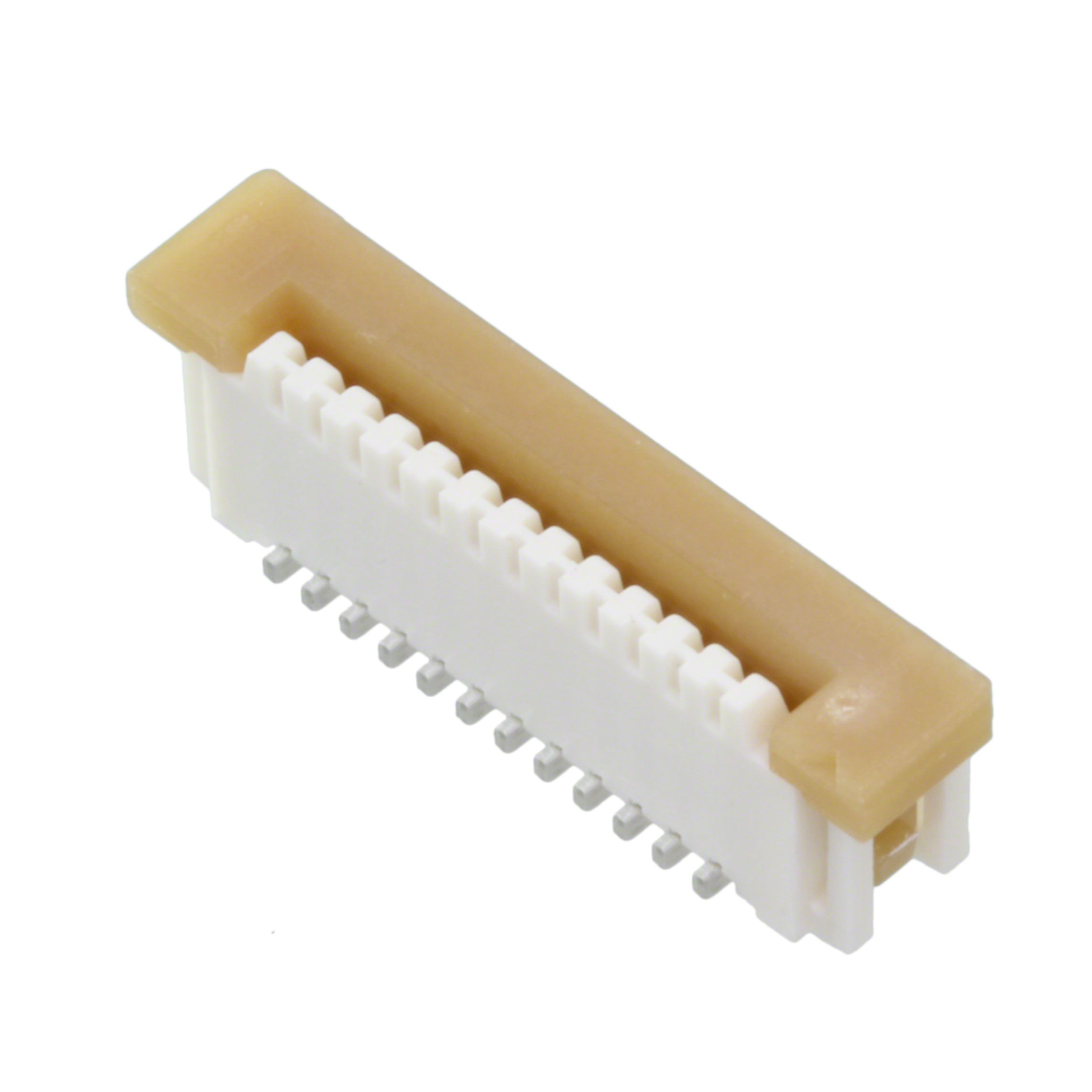

526101272
CONN FPC VERT 12POS 1MM SMDManufacturer: Molex
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
12 Position FPC Connector Contacts, Vertical - 1 Sided 0.039"" (1.00mm) Surface Mount
Additional Information
Series: Easy-On 52610RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 125V |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.226"" (5.74mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Cable End Type | Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
Request a Quote
Clients Also Buy
526101633
CONN FPC VERT 16POS 1MM SMD

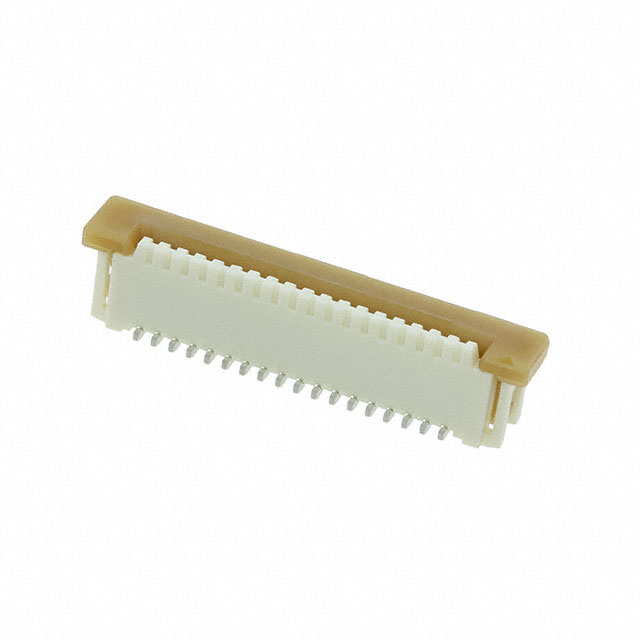

526101833
