559092674

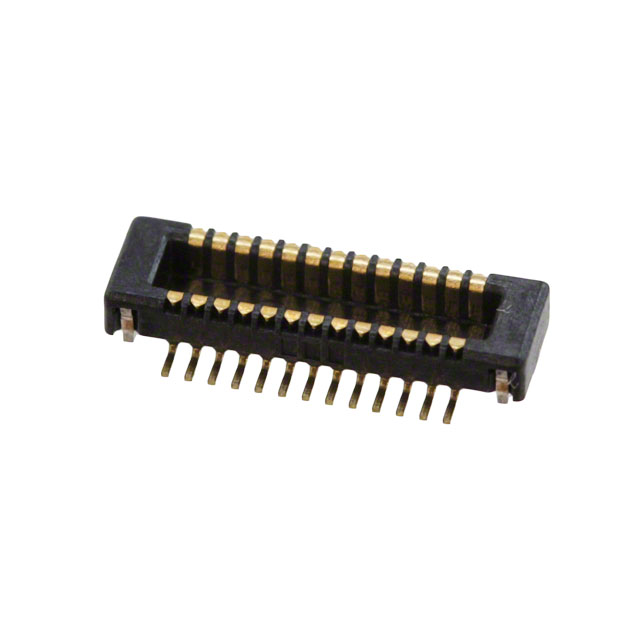

CONN PLUG 26POS SMD GOLDManufacturer: Molex
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
26 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: SlimStack 55909RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Pitch | 0.016"" (0.40mm) |
| Height Above Board | 0.045"" (1.14mm) |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Mated Stacking Heights | 1.5mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

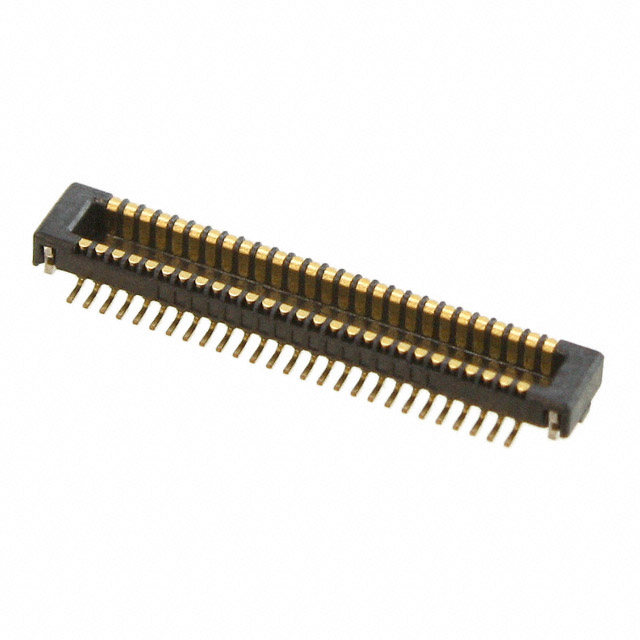

559095472
