536470874

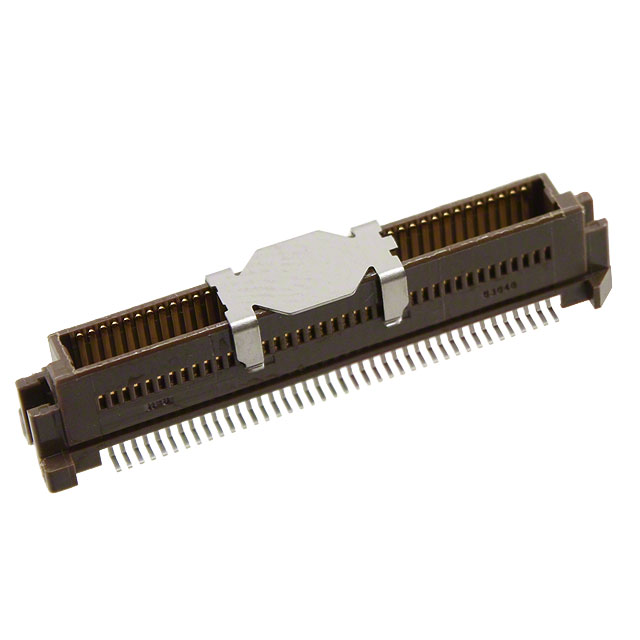

CONN PLUG 80POS SMD GOLDManufacturer: Molex
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: SlimStack 53647RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Pitch | 0.025"" (0.64mm) |
| Height Above Board | 0.275"" (6.99mm) |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Mated Stacking Heights | 8mm, 14mm |
| Number of Rows | 2 |
