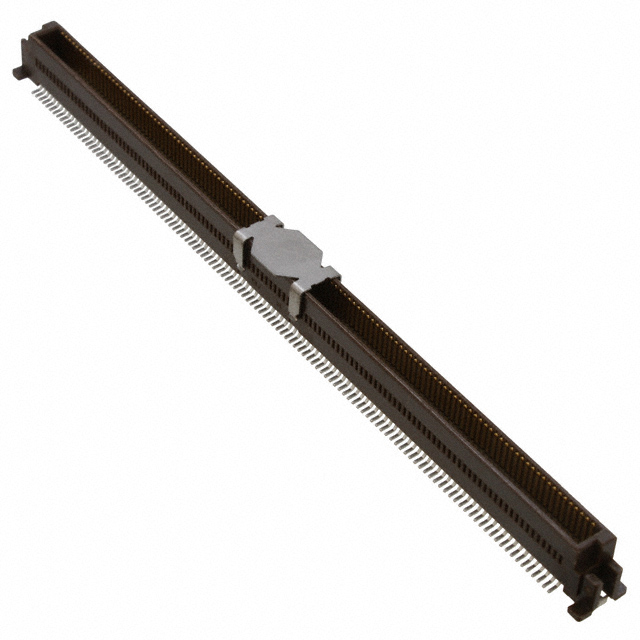

536252474

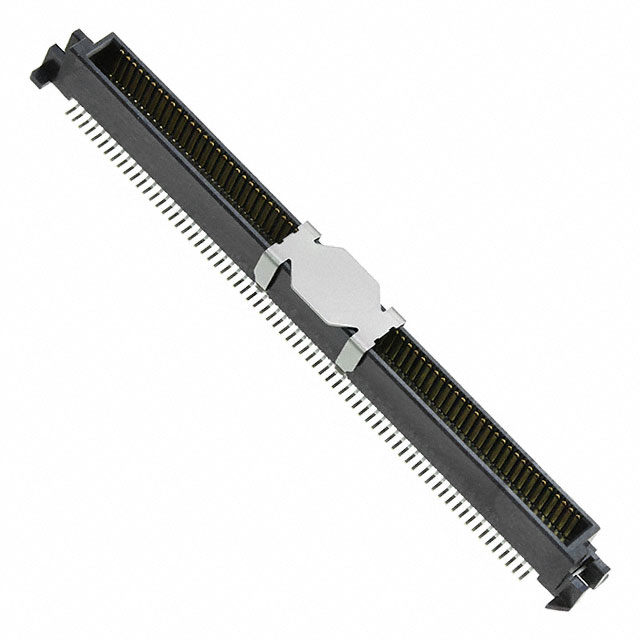

CONN PLUG 240POS SMD GOLDManufacturer: Molex
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
240 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: SlimStack 53625RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 240 |
| Pitch | 0.025"" (0.64mm) |
| Height Above Board | 0.236"" (6.00mm) |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Mated Stacking Heights | 7mm, 13mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

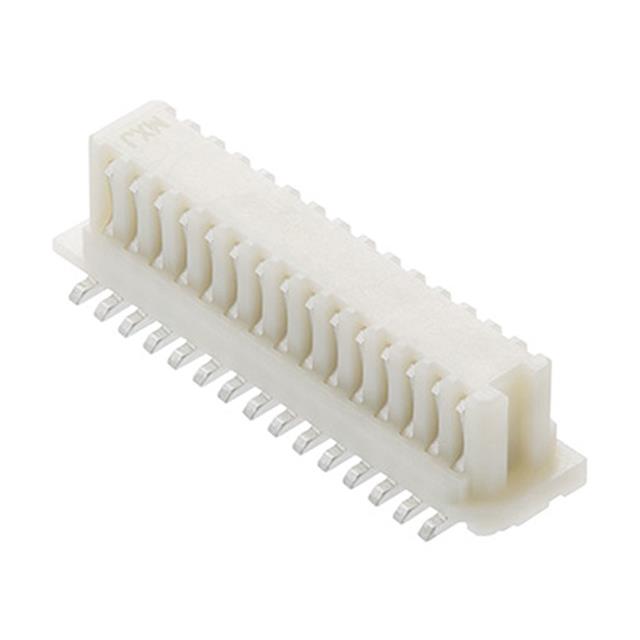

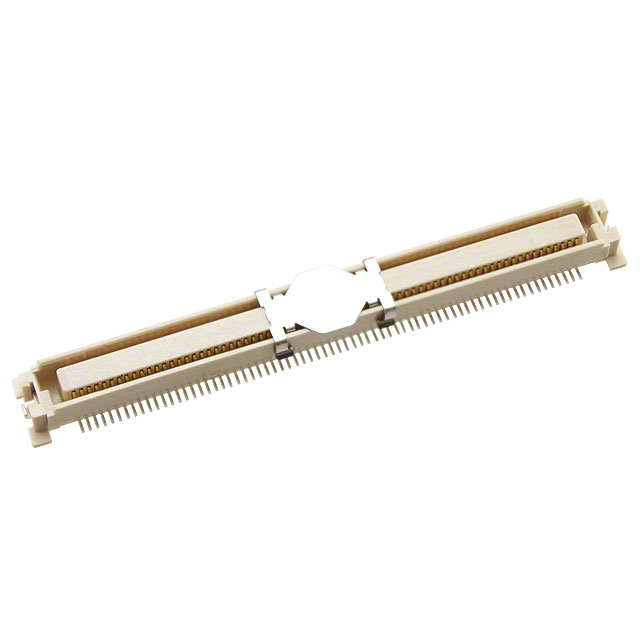

524652071TR250
SLIMSTACK BOARD-TO-BOARD CONNECT

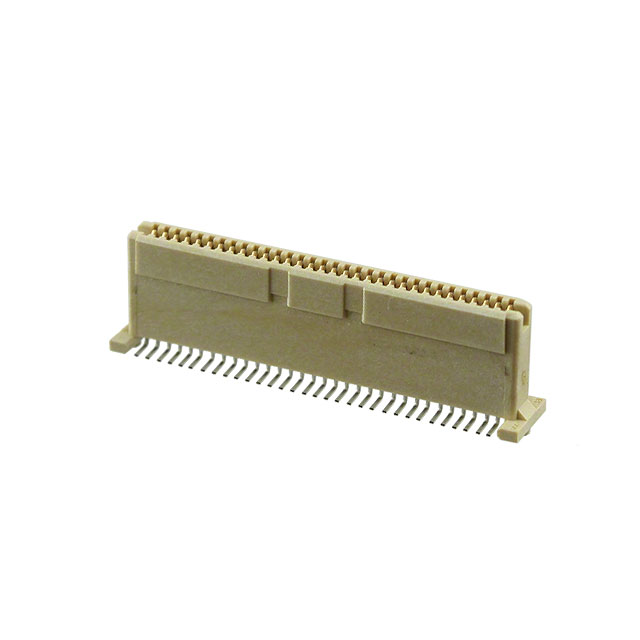

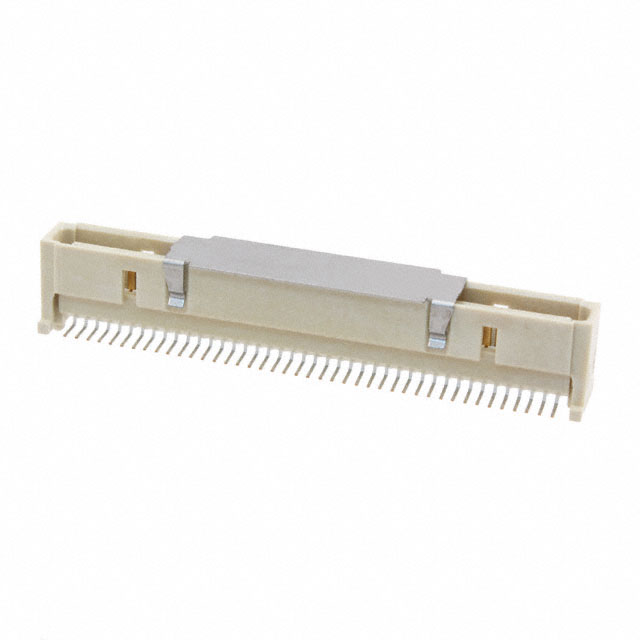

714393164
CONN RCPT 64POS SMD GOLD

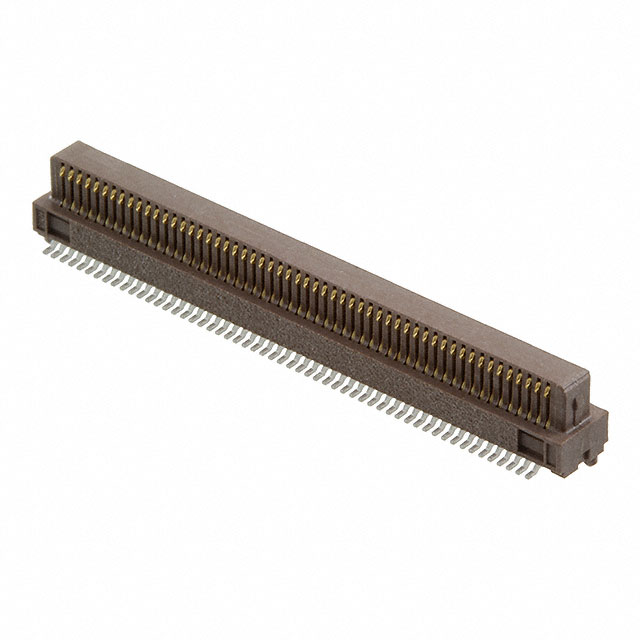

545521102
