465561145

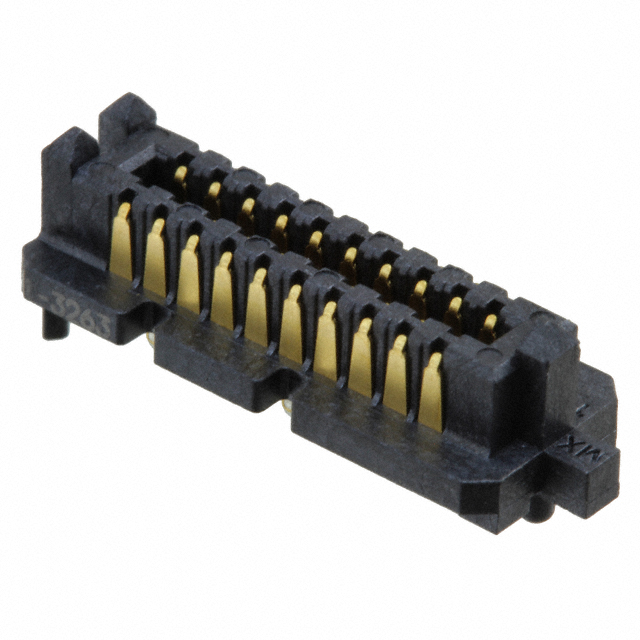

CONN HD ARRAY PLUG 40P SMD GOLDManufacturer: Molex
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
40 Position Connector High Density Array, Male Surface Mount Gold
Additional Information
Series: SEARAY 46556RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | High Density Array, Male |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Pitch | 0.050"" (1.27mm) |
| Height Above Board | 0.221"" (5.61mm) |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Mated Stacking Heights | 7mm, 8mm, 8.5mm, 9.5mm, 10mm |
| Number of Rows | 4 |
Request a Quote
Clients Also Buy
465561745
CONN HD ARRAY PLUG 40P SMD GOLD

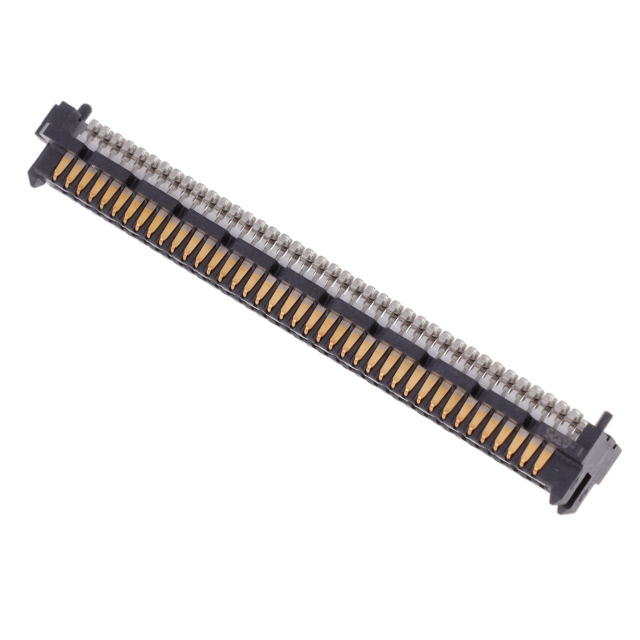

465564345
