MMR906XARE
SENSOR PRESSURE GAUGE MODULEManufacturer: Mitsumi Electric Company Ltd
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Mitsumi Electric Company Ltd MMR906XARE is a gauge pressure sensor module with a measurement range of -0.15 PSI to 5.8 PSI (-1 kPa to 40 kPa). This 8-SMD, No Lead device features a 0.1" (2.5mm) male tube port and a barbless port style. It offers temperature compensation and a 24-bit SPI output, providing high resolution for precise measurements. The sensor operates within a 1.7V to 3.6V supply voltage range and has an accuracy of ±0.66%. Designed for surface mounting, the MMR906XARE is suitable for demanding applications in Board Mount, Industrial Automation, and Medical Ventilation sectors, operating between 0°C and 60°C with a maximum pressure rating of 11.6 PSI (80kPa). The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SMD, No Lead, Top Port |
| Output Type | SPI |
| Mounting Type | Surface Mount |
| Output | 24 b |
| Operating Pressure | -0.15PSI ~ 5.8PSI (-1kPa ~ 40kPa) |
| Pressure Type | Gauge |
| Accuracy | ±0.66% |
| Operating Temperature | 0°C ~ 60°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 1.7V ~ 3.6V |
| Port Size | Male - 0.1"" (2.5mm) Tube |
| Applications | Board Mount, Industrial Automation, Medical Ventilation |
| Supplier Device Package | - |
| Port Style | Barbless |
| Maximum Pressure | 11.6PSI (80kPa) |
| Grade | - |
| Qualification | - |
Request a Quote
Clients Also Buy

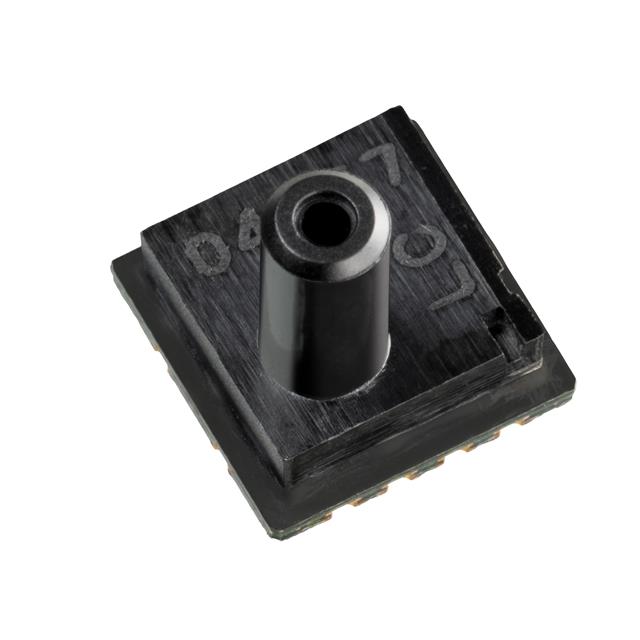

MMR920C04ARE
SENSOR 0.57PSIG 0.1"" 7BIT

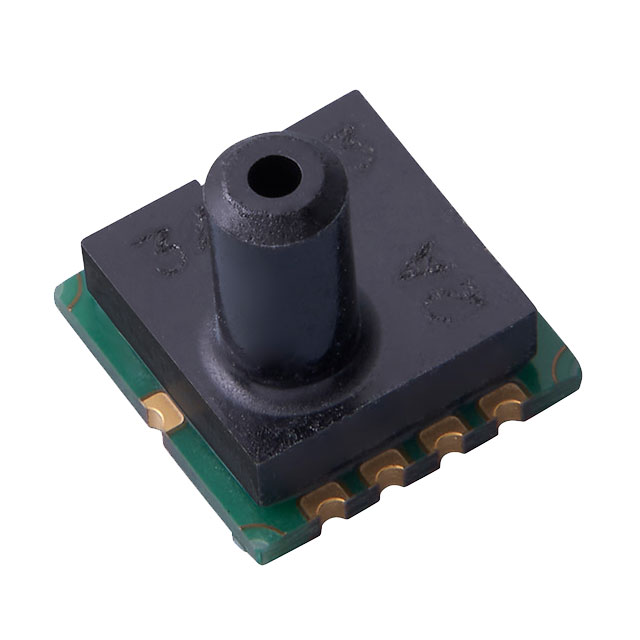

MMR902A34ARE
