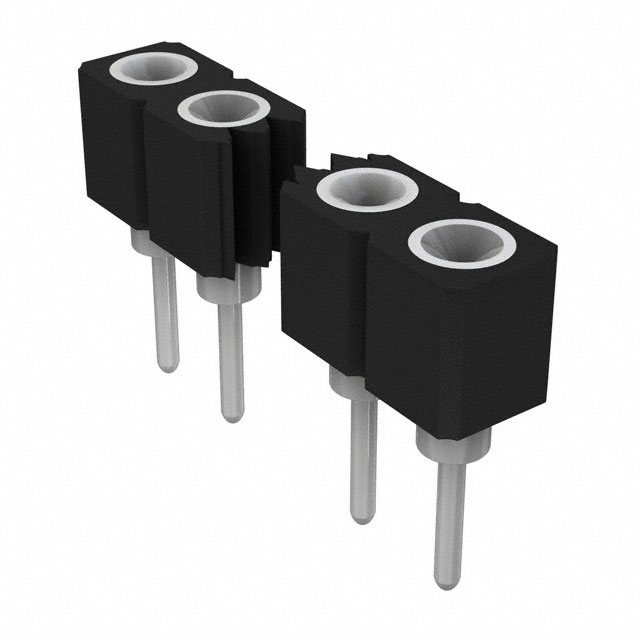

831-43-010-10-001000
SKT 2MM STRGT SKT SGL ROW THRUManufacturer: Mill-Max Manufacturing Corp.
Categories: Headers, Receptacles, Female Sockets
Quality Control: Learn More
10 Position Receptacle Connector 0.079"" (2.00mm) Through Hole Gold
Additional Information
Series: 831RoHS Status: ROHS3 CompliantManufacturer Lead Time: 2 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Style | Board to Board |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - |
| Insulation Color | Black |
| Pitch - Mating | 0.079"" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.165"" (4.20mm) |
| Row Spacing - Mating | - |
| Number of Rows | 1 |
Request a Quote
