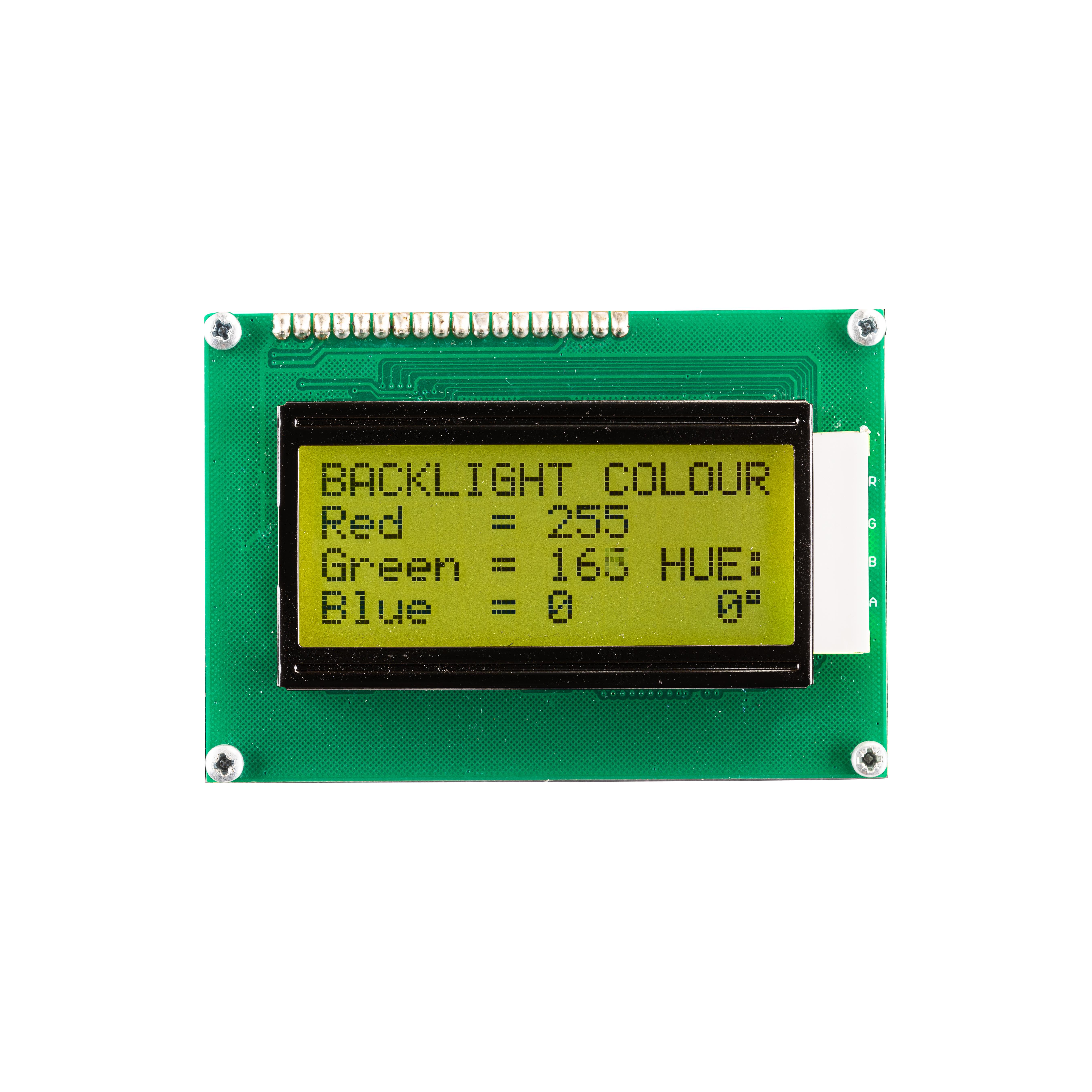

MD41605A6W-FPTLRGB
DISPLAY, 4x16 COB LCD, Black onManufacturer: Midas Displays
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red/Green/Blue Parallel 87.00mm x 60.00mm x 14.50mm
Additional Information
Series: MD41605ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Red/Green/Blue |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 61.80mm L x 25.20mm W |
| Character Size | - |
| Display Format | 16 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.56mm H |
| Controller Type | ST7063C, ST7065C, ST7066U |
| Outline L x W x H | 87.00mm x 60.00mm x 14.50mm |
| Text Color | Black |
| Background Color | Red/Green/Blue |
| Number of Characters | 64.0 |
