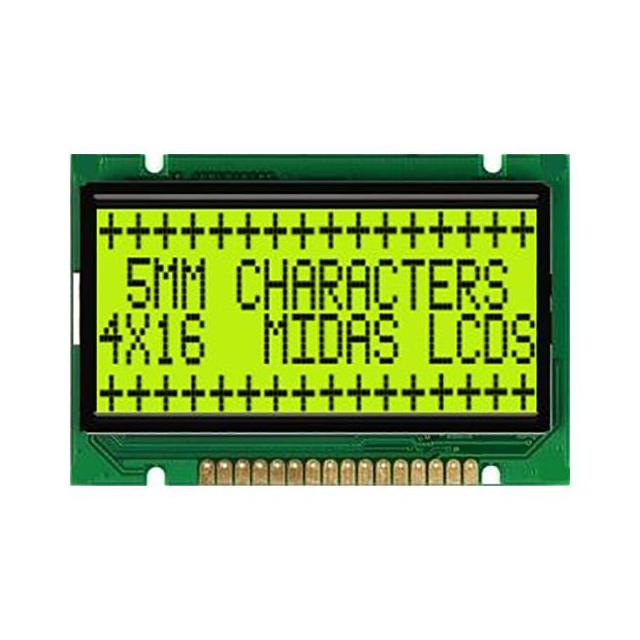

MC41605B6W-SPTLY-V2
4x16 character chip-on-board LCDManufacturer: Midas Displays
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective STN - Super-Twisted Nematic LED - Yellow/Green Parallel 72.00mm x 48.00mm x 13.60mm
Additional Information
Series: MC41605BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.7V ~ 5.5V |
| Viewing Area | 61.80mm L x 25.20mm W |
| Character Size | 4.76mm H x 2.96mm W |
| Display Format | 16 x 4 |
| Character Format | - |
| Dot Size | 0.56mm W x 0.56mm H |
| Controller Type | ST7066U |
| Outline L x W x H | 72.00mm x 48.00mm x 13.60mm |
| Text Color | Black |
| Background Color | Yellow/Green |
| Number of Characters | 64.0 |
