MC21605G6W-FPTLW-V2
DISPLAY, 2x16 COB LCD, Black onManufacturer: Midas Displays
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

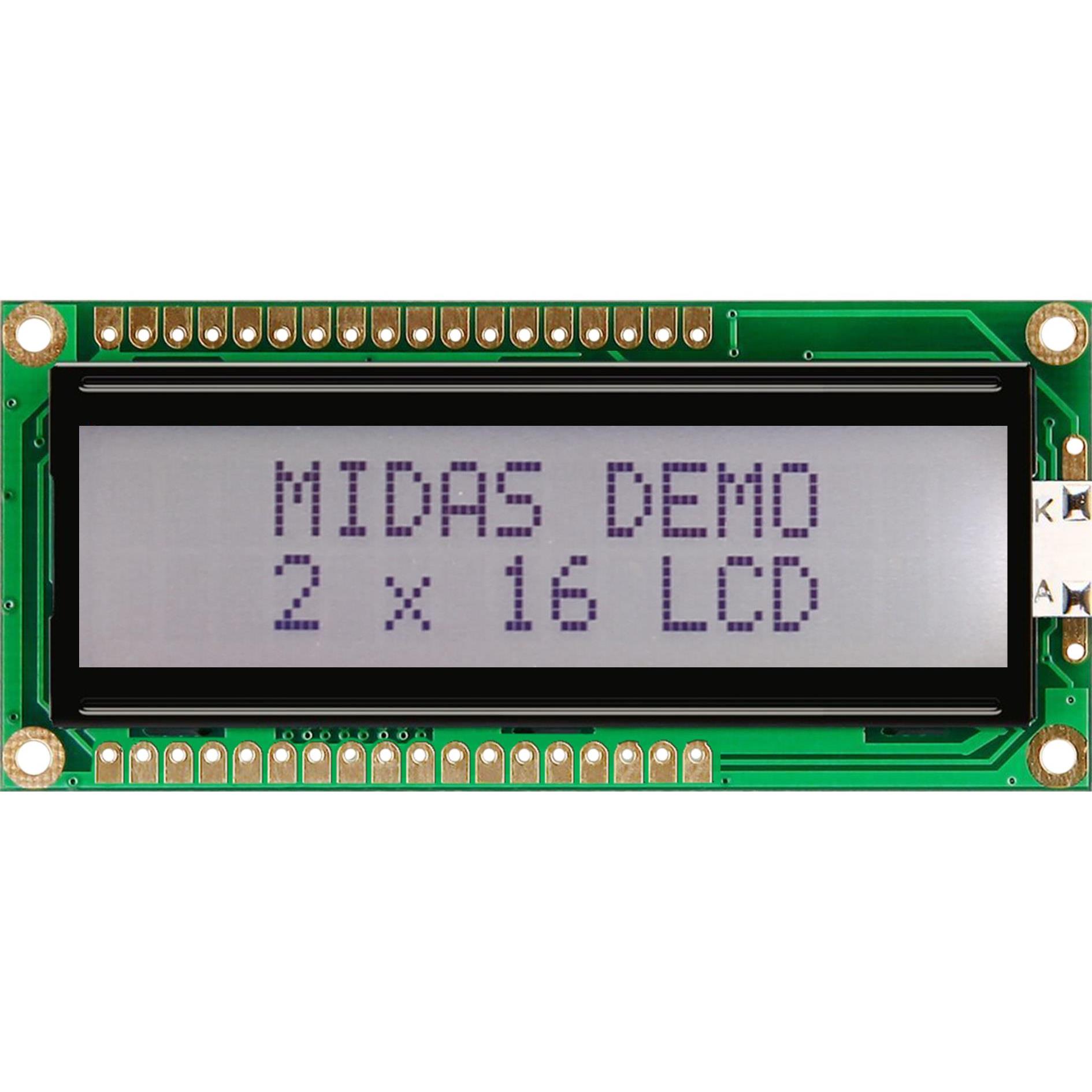

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - White Parallel 80.00mm x 36.00mm x 13.50mm
Additional Information
Series: MC21605GRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 64.50mm L x 16.40mm W |
| Character Size | 5.23mm H x 3.00mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.61mm H |
| Controller Type | - |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Text Color | Black |
| Background Color | White |
| Number of Characters | 32.0 |
