MAP5KE64AE3
TVS DIODE 64VWM 103VC DO204ALManufacturer: Microsemi Corporation
Categories: TVS Diodes
Quality Control: Learn More

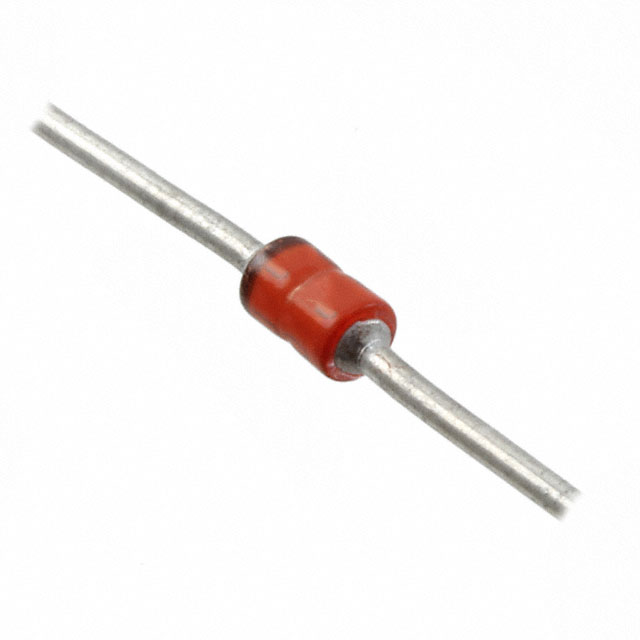

Microsemi Corporation's MAP5KE64AE3 is a 500W axial leaded TVS diode designed for robust transient voltage suppression. This unidirectional device offers a reverse standoff voltage of 64V and a breakdown voltage of 71.1V minimum. At a peak pulse current of 4.9A (10/1000µs), it provides a clamping voltage of 103V. The MAP5KE64AE3 is qualified to MIL-PRF-19500 and operates across a wide temperature range of -65°C to 150°C. Packaged in a DO-204AL (DO-41) case, this component is suitable for general-purpose applications, including those requiring military-grade performance for protection against voltage transients.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AL, DO-41, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 4.9A |
| Voltage - Reverse Standoff (Typ) | 64V |
| Supplier Device Package | DO-204AL (DO-41) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 71.1V |
| Voltage - Clamping (Max) @ Ipp | 103V |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
