JANTX1N4966DUS
DIODE ZENER 22V 5W D5BManufacturer: Microsemi Corporation
Categories: Single Zener Diodes
Quality Control: Learn More

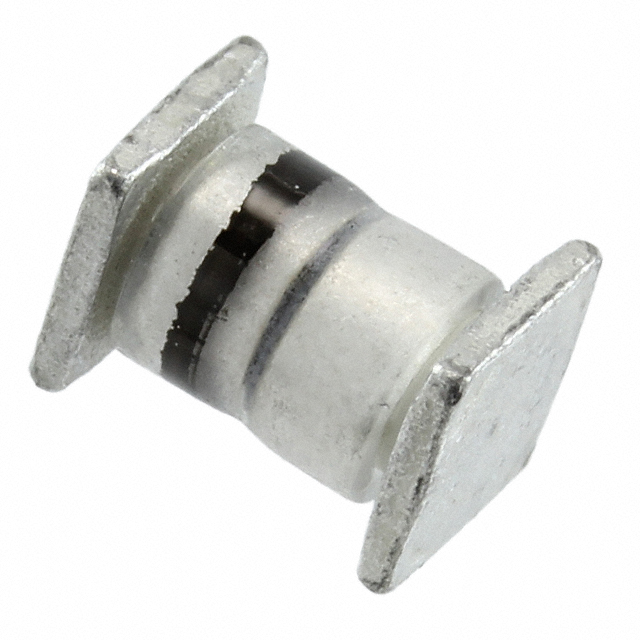

Microsemi Corporation JANTX1N4966DUS is a 5W Zener diode designed for high-reliability applications. This military-grade component features a 22V nominal Zener voltage with a tight ±1% tolerance. With a maximum power dissipation of 5W and a low impedance of 5 Ohms (Zzt), it is suitable for voltage regulation and transient suppression. The diode exhibits a reverse leakage current of 2 µA at 16.7V and a forward voltage of 1.5V at 1A. The JANTX1N4966DUS is packaged in a D-5B (SQ-MELF, E) surface mount case, operating across a wide temperature range of -65°C to 175°C. This component meets MIL-PRF-19500/435 qualification standards and finds application in aerospace, defense, and industrial systems requiring robust voltage control.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Bulk |
| Package / Case | SQ-MELF, E |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C ~ 175°C |
| Voltage - Zener (Nom) (Vz) | 22 V |
| Impedance (Max) (Zzt) | 5 Ohms |
| Supplier Device Package | D-5B |
| Grade | Military |
| Power - Max | 5 W |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 1 A |
| Current - Reverse Leakage @ Vr | 2 µA @ 16.7 V |
| Qualification | MIL-PRF-19500/435 |
