UPS5100HE3
DIODE SCHOTTKY 100V 5A POWERMITEManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More

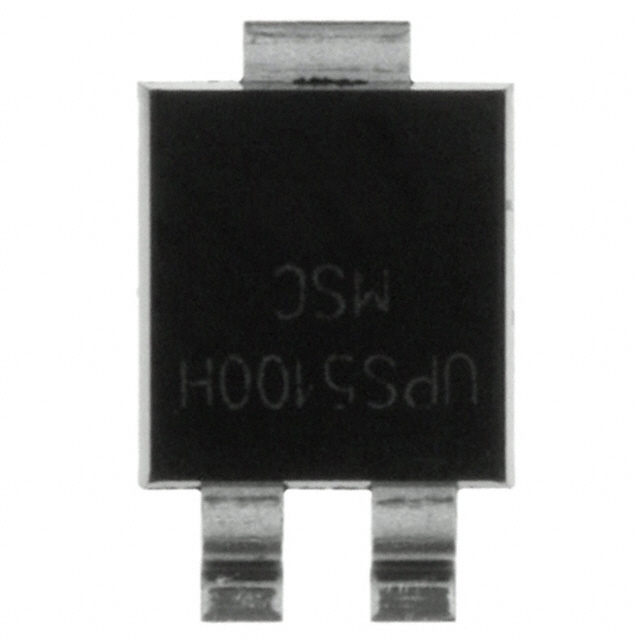

Microsemi Corporation UPS5100HE3 is a Schottky diode designed for demanding applications. This surface mount component offers a 100V reverse voltage capability and an average rectified current of 5A. Key electrical specifications include a forward voltage drop of 810mV at 5A and a reverse leakage current of 200µA at 100V. The diode exhibits a capacitance of 150pF at 4V and 1MHz, with a fast recovery time characteristic. Housed in a compact Powermite®3 package, this device is suitable for high-frequency rectification and power switching in industrial, automotive, and telecommunications sectors. Operating temperature ranges from -55°C to 125°C, and it is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Powermite®3 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 150pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | Powermite 3 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 810 mV @ 5 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 100 V |
