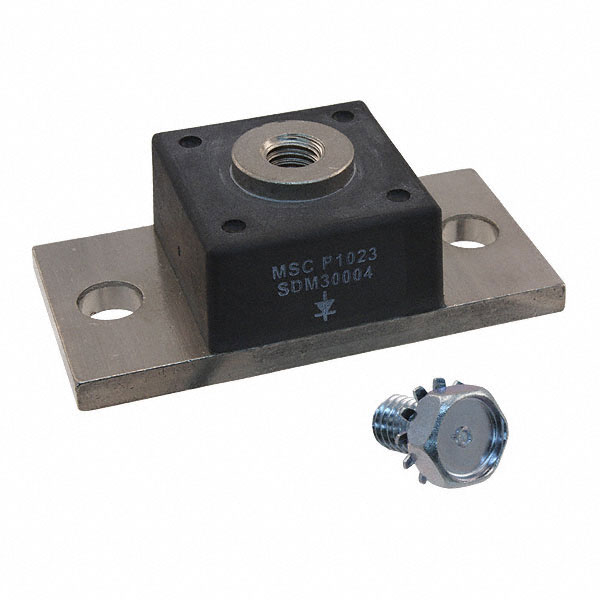

SDM30004
DIODE GEN PURP 400V 300A MODULEManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation's SDM30004 is a general-purpose diode module designed for high-current rectification applications. This chassis-mount component features a maximum DC reverse voltage of 400V and an average rectified forward current capability of 300A. The forward voltage drop is specified at a maximum of 1.1V at 300A, with a reverse leakage current of 75 µA at 400V. Operating with standard recovery characteristics exceeding 500ns for currents greater than 200mA, this module is suitable for power supply rectification, motor control, and welding equipment. The device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 300A |
| Supplier Device Package | Module |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 300 A |
| Current - Reverse Leakage @ Vr | 75 µA @ 400 V |
