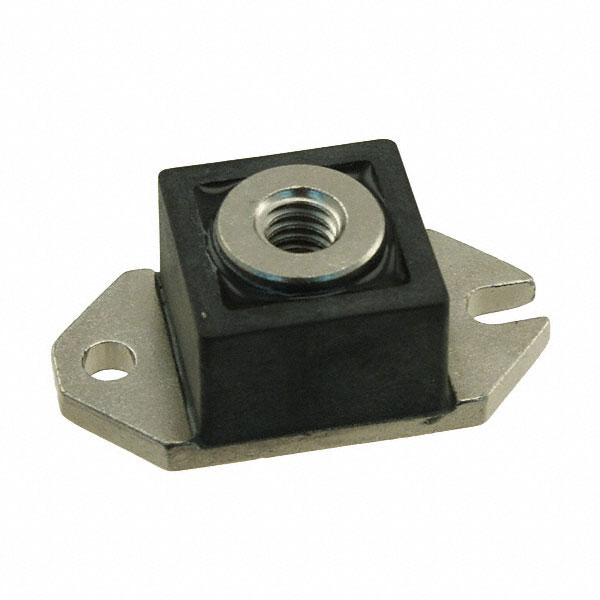

HU20260
DIODE GP 600V 200A HALF-PAKManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation's HU20260 is a high-performance general-purpose diode designed for demanding applications. This component features a robust 600V reverse voltage rating and a substantial 200A average rectified current capability. The HALF-PAK package facilitates efficient chassis mounting, crucial for thermal management in power electronics. With a forward voltage drop of 1.35V at its maximum rated current, the HU20260 minimizes power dissipation. Its fast recovery characteristic, with a reverse recovery time (trr) of 130 ns, makes it suitable for applications requiring efficient switching. The diode exhibits a low reverse leakage current of 50 µA at 600V. This component is widely utilized in industrial power supplies, motor control, and power factor correction circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 130 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 200A |
| Supplier Device Package | HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 200 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
