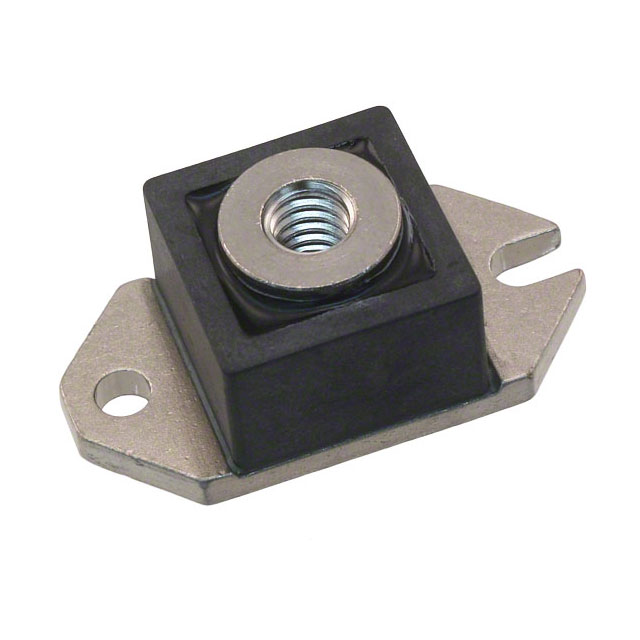

HS243100
DIODE SCHOTTKY 100V 240A HALFPAKManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation HS243100 is a Schottky diode with a 100V reverse voltage rating and a 240A average rectified current capability. This chassis mount component, housed in a HALF-PAK package, features a low forward voltage drop of 860mV at its maximum forward current. The device exhibits a reverse leakage current of 8mA at 100V. Its capacitance is rated at 6400pF at 5V and 1MHz. This diode's fast recovery characteristics make it suitable for applications in power supply, motor control, and industrial power conversion systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 6400pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 240A |
| Supplier Device Package | HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 860 mV @ 240 A |
| Current - Reverse Leakage @ Vr | 8 mA @ 100 V |
