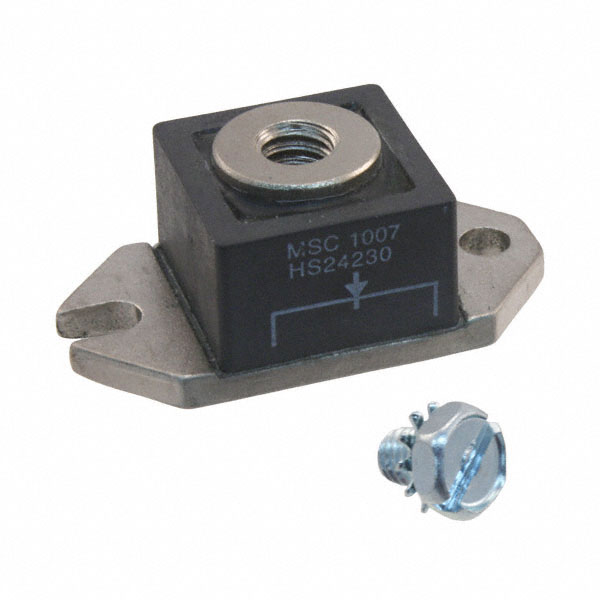

HS24230
DIODE SCHOTTKY 30V 240A HALF-PAKManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation HS24230 is a Schottky diode designed for high-current rectification. This component features a 30V reverse voltage rating and an impressive average forward current capability of 240A. The forward voltage drop is optimized at 550mV when conducting at its maximum rated current. With a reverse leakage current of 12mA at 30V, the HS24230 exhibits efficient operation. The device's junction capacitance is specified at 10500pF at 5V and 1MHz. The HS24230 is housed in a robust HALF-PAK package suitable for chassis mounting, making it ideal for applications in power supplies, motor control, and industrial power systems where efficient and high-power rectification is critical. The technology employed ensures fast switching characteristics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 10500pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 240A |
| Supplier Device Package | HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 240 A |
| Current - Reverse Leakage @ Vr | 12 mA @ 30 V |
