HS18140

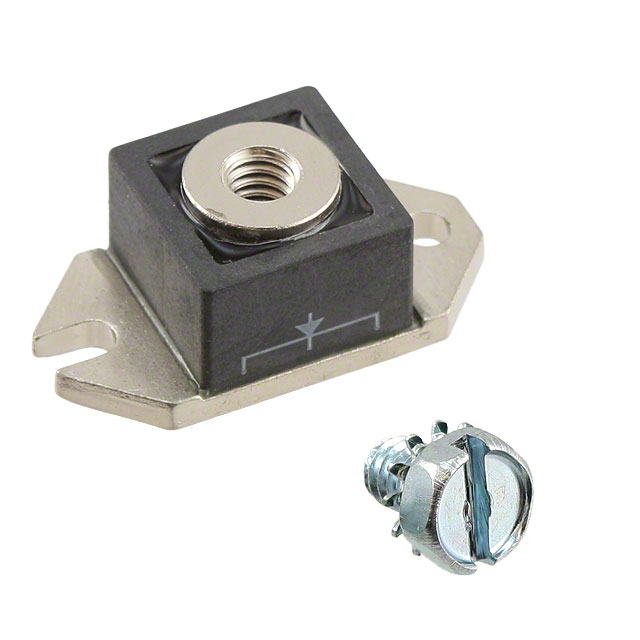

DIODE SCHOTTKY 40V 180A HALF-PAKManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation HS18140 is a Schottky diode designed for high-current rectification. This component features a maximum DC reverse voltage rating of 40 V and an average rectified forward current capability of 180 A. The forward voltage drop at 180 A is a low 700 mV, indicative of its efficient operation. Designed for demanding applications, it offers a reverse leakage current of 4 mA at 40 V. The device is housed in a HALF-PAK package for chassis mounting, facilitating efficient thermal management in power systems. With a typical capacitance of 7500 pF at 5 V and 1 MHz, it is suitable for use in power supplies, motor control, and industrial automation where robust and efficient rectification is critical. The speed characteristic indicates fast recovery times.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 7500pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 180A |
| Supplier Device Package | HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 180 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 40 V |
