HS12045

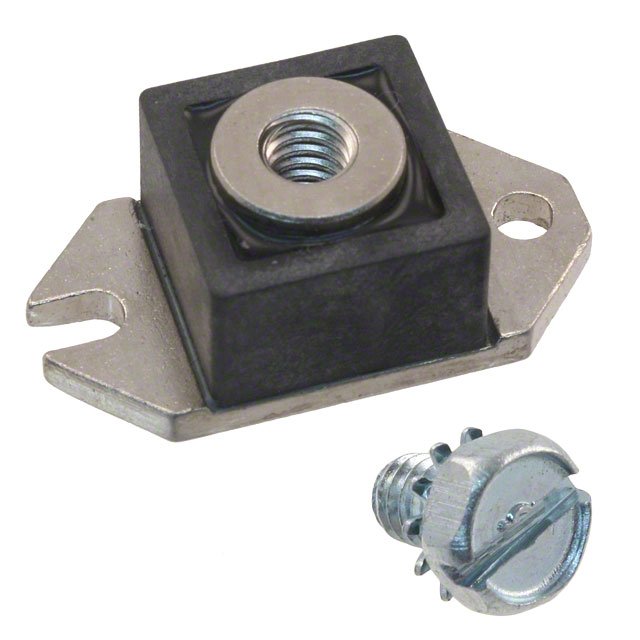

DIODE SCHOTTKY 45V 120A HALF-PAKManufacturer: Microsemi Corporation
Categories: Single Diodes
Quality Control: Learn More
Microsemi Corporation HS12045 is a Schottky diode with a 45V reverse voltage rating and a 120A average rectified current capability. This chassis mount device, packaged in a HALF-PAK, features a low forward voltage drop of 550mV at 120A. The capacitance at 5V and 1MHz is 5500pF. Designed for high-power applications, it is suitable for use in industrial power supplies, electric vehicle charging, and motor control systems. The diode's fast recovery characteristic (less than 500ns for currents greater than 200mA) ensures efficient switching performance.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | HALF-PAK |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Capacitance @ Vr, F | 5500pF @ 5V, 1MHz |
| Current - Average Rectified (Io) | 120A |
| Supplier Device Package | HALF-PAK |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 120 A |
| Current - Reverse Leakage @ Vr | 5 mA @ 45 V |
