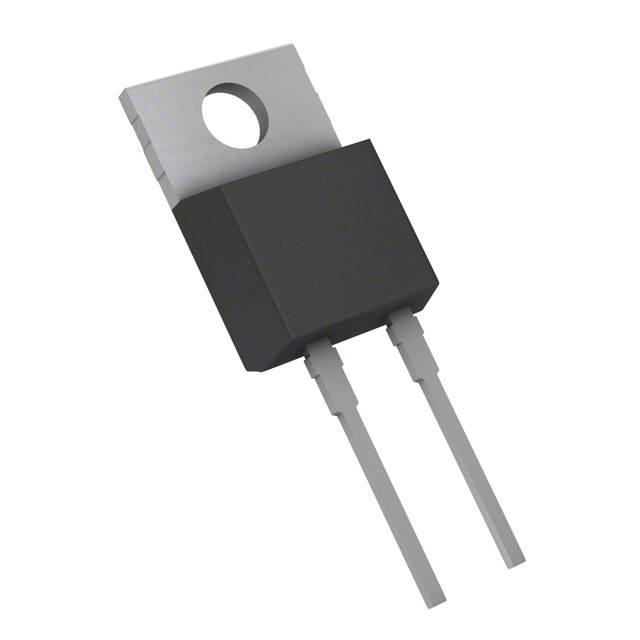

APT15D30KG

DIODE GP 300V 15A TO220

Manufacturer: Microsemi Corporation

Categories: Single Diodes

Quality Control: Learn More

Microsemi Corporation APT15D30KG is a general-purpose diode with a 300V reverse voltage rating and a 15A average rectified current (Io). This rectifier features a fast recovery time of 32 ns, classifying it as a fast recovery diode. The forward voltage (Vf) is a maximum of 1.4V at 15A, and the reverse leakage current is 150 µA at 300V. Housed in a TO-220-2 package, the APT15D30KG is designed for through-hole mounting and operates across a junction temperature range of -55°C to 150°C. This component is suitable for applications in power supply rectification, motor control, and industrial power conversion. The device is supplied in tube packaging.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tube
Technical Details:
PackagingTube
Package / CaseTO-220-2
Mounting TypeThrough Hole
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)32 ns
TechnologyStandard
Capacitance @ Vr, F-
Current - Average Rectified (Io)15A
Supplier Device PackageTO-220-2
Operating Temperature - Junction-55°C ~ 150°C
Voltage - DC Reverse (Vr) (Max)300 V
Voltage - Forward (Vf) (Max) @ If1.4 V @ 15 A
Current - Reverse Leakage @ Vr150 µA @ 300 V
