JANSP2N3634L
NPN TRANSISTORManufacturer: Microsemi Corporation
Categories: Single Bipolar Transistors
Quality Control: Learn More

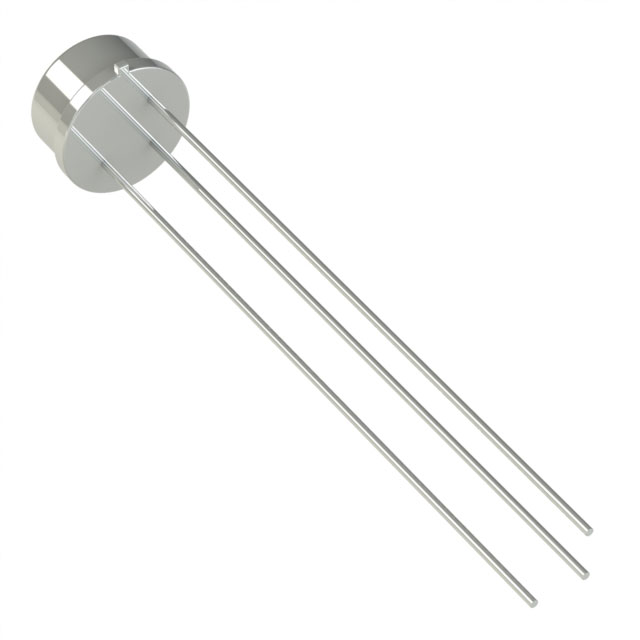

Microsemi Corporation JANSP2N3634L is a high-reliability NPN bipolar junction transistor designed for demanding applications. This transistor features a maximum collector-emitter breakdown voltage of 140 V and a collector current of 10 µA. It offers a minimum DC current gain (hFE) of 50 at 50mA and 10V, with a Vce(sat) of 600mV at 5mA/50mA. Rated for 1 W of power dissipation, it operates across a wide temperature range of -65°C to 200°C. The JANSP2N3634L is packaged in a TO-205AA (TO-5-3 Metal Can) through-hole configuration, suitable for robust mounting. This component meets MIL-PRF-19500/357 specifications, making it ideal for military and aerospace applications.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-205AA, TO-5-3 Metal Can |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 50mA, 10V |
| Frequency - Transition | - |
| Supplier Device Package | TO-5AA |
| Grade | Military |
| Current - Collector (Ic) (Max) | 10 µA |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 1 W |
| Qualification | MIL-PRF-19500/357 |
