MSTC110-16
POWER MOD THYRISTOR/DIODE T1Manufacturer: Microsemi Corporation
Categories: SCRs - Modules
Quality Control: Learn More

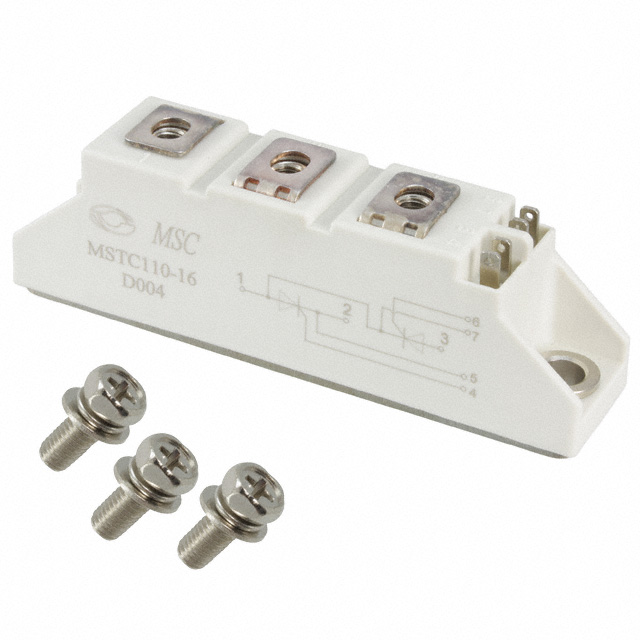

Microsemi Corporation MSTC110-16 SCR Module. This module features two SCRs in a series connection, designed for high-power applications requiring robust switching capabilities. With a blocking voltage of 1.6 kV and a continuous on-state current handling of 110 A (average), the MSTC110-16 is suitable for demanding industrial power control, motor drives, and power supply rectification. The device offers a non-repetitive surge current rating of 2250 A at 50 Hz. Gate trigger characteristics include a maximum trigger current (Igt) of 150 mA and a trigger voltage (Vgt) of 3 V. The hold current (Ih) is rated at a maximum of 250 mA. Engineered for a wide operating temperature range of -40°C to 130°C (TJ), this screw-mount module ensures reliable performance in challenging environments. The MSTC110-16 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Screw Mount |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 2250A @ 50Hz |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 110 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
