MSFC160-16
POWER MOD THYRISTOR/DIODE F2Manufacturer: Microsemi Corporation
Categories: SCRs - Modules
Quality Control: Learn More

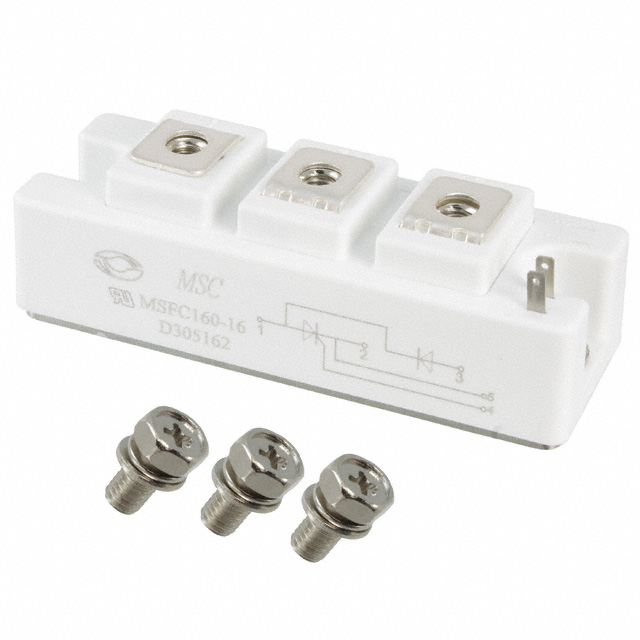

The Microsemi Corporation MSFC160-16 is a high-performance SCR module designed for demanding power control applications. This module features a series connection of a Silicon Controlled Rectifier (SCR) and a diode, rated for 1.6 kV off-state voltage. With a maximum average on-state current (It(AV)) of 160 A and a non-repetitive surge current (Itsm) capability of 5400 A at 50 Hz, it is engineered for robust operation. The module requires a gate trigger current (Igt) of up to 150 mA and a gate trigger voltage (Vgt) of up to 3 V for activation. It also has a hold current (Ih) of 400 mA. The MSFC160-16 utilizes a screw mount for secure installation and operates within a temperature range of -40°C to 125°C (TJ). This component is commonly employed in power conversion, motor control, and industrial power systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Screw Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - SCR/Diode |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Current - On State (It (AV)) (Max) | 160 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
