MSDT100-16

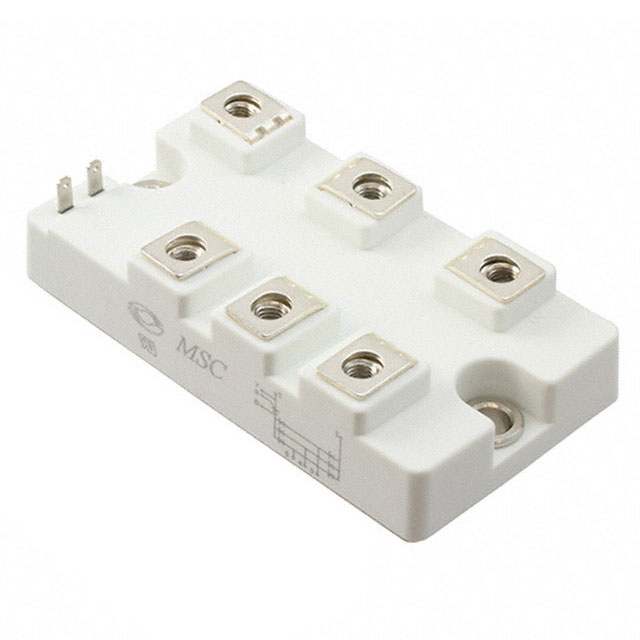

PWR MOD THYRISTOR 1600V 100V SM4Manufacturer: Microsemi Corporation
Categories: SCRs - Modules
Quality Control: Learn More
Microsemi Corporation's MSDT100-16 is a 3-phase SCR module featuring a bridge configuration with one SCR and six diodes. This chassis-mount component offers a repetitive peak off-state voltage of 1.6 kV and a continuous on-state current of 100 A. The module is designed for demanding applications with a surge capability of 1200 A at 50 Hz. Gate trigger requirements are a maximum of 3 V and 150 mA. Operating across a temperature range of -40°C to 150°C (TJ), it is housed in an M4 Module package for efficient thermal management. This robust component is suitable for power control applications in industrial automation, motor drives, and power supplies.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | M4 Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Structure | Bridge, 3-Phase - SCRs/Diodes |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1200A @ 50Hz |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes |
| Current - On State (It (AV)) (Max) | 100 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - Off State | 1.6 kV |
