090-44310-21
XTAL OSC ATOMIC 10.0000MHZ CMOSManufacturer: Microsemi Corporation
Categories: Oscillators
Quality Control: Learn More

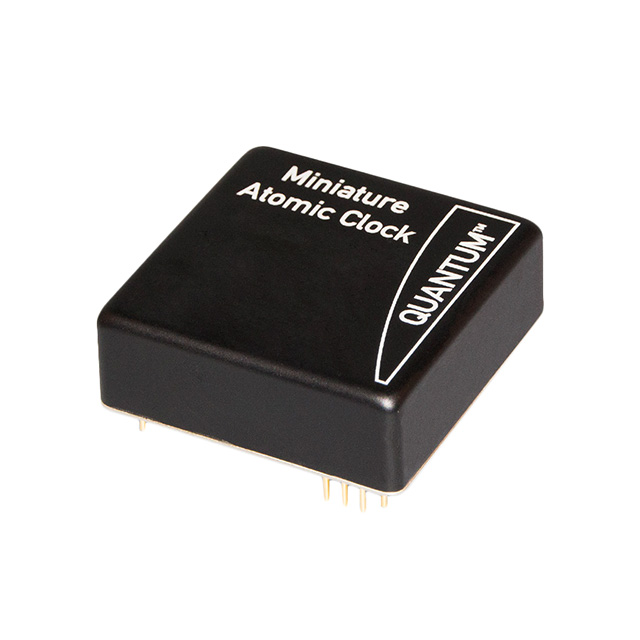

Microsemi Corporation SA.31m Series 090-44310-21 is a 10 MHz Atomic CMOS Oscillator module. This through-hole mounted component operates from a 5V supply and exhibits a frequency stability of 1 ppb. The module measures 2.000" L x 2.000" W (50.80mm x 50.80mm) with a seated height of 0.740" (18.80mm). The device is designed for applications requiring highly precise and stable frequency generation, often found in telecommunications infrastructure, scientific instrumentation, and high-frequency test and measurement equipment. The current supply, when at its maximum, is 2.8A. The base resonator is a crystal, and the output signal is CMOS. This component is supplied in bulk packaging.
Additional Information
Series: SA.31mRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Size / Dimension | 2.000"" L x 2.000"" W (50.80mm x 50.80mm) |
| Mounting Type | Through Hole |
| Output | CMOS |
| Function | - |
| Type | Atomic |
| Operating Temperature | -10°C ~ 75°C |
| Frequency Stability | 1ppb |
| Voltage - Supply | 5V |
| Ratings | - |
| Current - Supply (Max) | 2.8A |
| Height - Seated (Max) | 0.740"" (18.80mm) |
| Absolute Pull Range (APR) | - |
| Frequency | 10 MHz |
| Base Resonator | Crystal |
