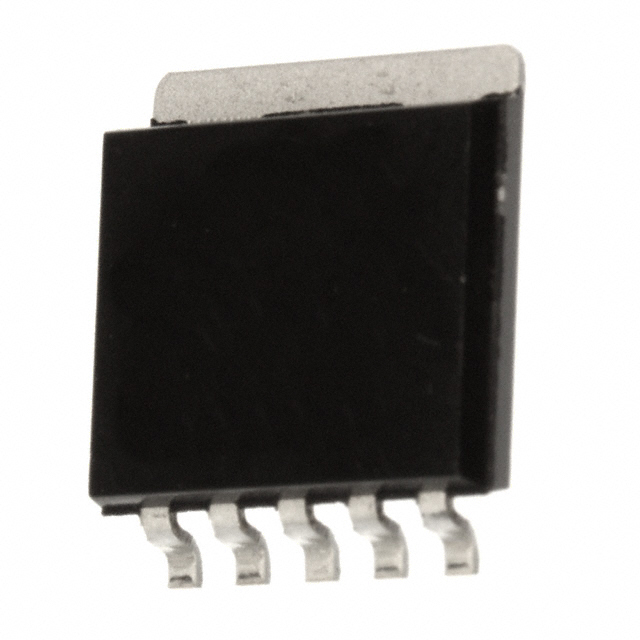

LX8816-04CDF
IC REG LIN POS ADJ 1A/1A 5SPAKManufacturer: Microsemi Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Microsemi Corporation LX8816-04CDF is a dual-output positive adjustable linear voltage regulator. This component offers two independent regulation channels, each capable of delivering up to 1A of output current. The output voltage is adjustable from a minimum of 1.25V up to a maximum of 5.5V, with specific fixed options available, such as 3.3V. The device features a low quiescent current of 3.8 mA and a maximum input voltage rating of 10V. Protection features include over-current and over-temperature shutdown. With a typical voltage dropout of 1.3V at 1A for each output, the LX8816-04CDF is suitable for applications requiring precise voltage regulation in the telecommunications, industrial, and consumer electronics sectors. The package type is 5-SPAK, designed for surface mounting.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SPAK-5 (5 Leads + Tab) |
| Output Type | Adjustable (Fixed) |
| Mounting Type | Surface Mount |
| Current - Output | 1A, 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 3.8 mA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 2 |
| Supplier Device Package | 5-SPAK |
| Voltage - Output (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.25V (3.3V) |
| Control Features | - |
| PSRR | 75dB (120Hz) |
| Voltage Dropout (Max) | 1.3V @ 1A, 1.3V @ 1A |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 6 A |
