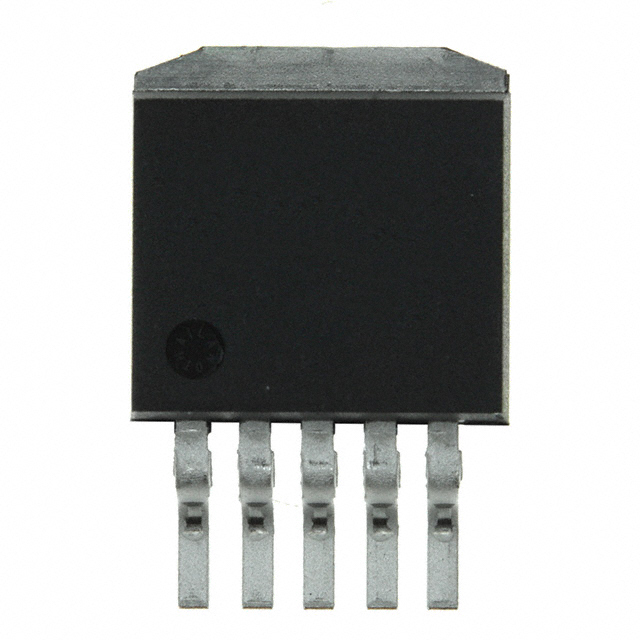

LX8580A-00CDD
IC REG LIN POS ADJ 7.5A TO263-5Manufacturer: Microsemi Corporation
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Microsemi Corporation's LX8580A-00CDD is a high-current positive adjustable linear voltage regulator IC. Designed for demanding applications, this component delivers up to 7.5A output current with a low dropout voltage of 0.7V at its maximum output current. It features adjustable output voltage capabilities, with a minimum configurable output of 2V and a maximum of 2.85V. The LX8580A-00CDD incorporates robust protection features including over-current and over-temperature shutdown, ensuring system reliability. Its TO-263-5 package facilitates surface mounting, making it suitable for integration into various electronic designs. This regulator finds application in power supply units, battery charging systems, and other power management circuits within the industrial and consumer electronics sectors. The device operates within an ambient temperature range of 0°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 7.5A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 13V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-263-5 |
| Voltage - Output (Max) | 2.85V |
| Voltage - Output (Min/Fixed) | 2V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 0.7V @ 7.5A |
| Protection Features | Over Current, Over Temperature |
