LX6523AID
IC CCFL CNTRL 14SOICManufacturer: Microsemi Corporation
Categories: Lighting, Ballast Controllers
Quality Control: Learn More
The Microsemi Corporation LX6523AID is a high-performance CCFL controller designed for efficient backlighting solutions. This component features integrated dimming capabilities, allowing for precise control of cold cathode fluorescent lamp (CCFL) brightness. The LX6523AID operates across a wide voltage supply range of 6V to 27V, accommodating diverse power architectures. It is housed in a standard 14-SOIC package, suitable for surface mount applications. This CCFL controller is commonly utilized in display backlighting for automotive and industrial equipment. The device supports a wide operating temperature range of -40°C to 85°C, ensuring reliability in demanding environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

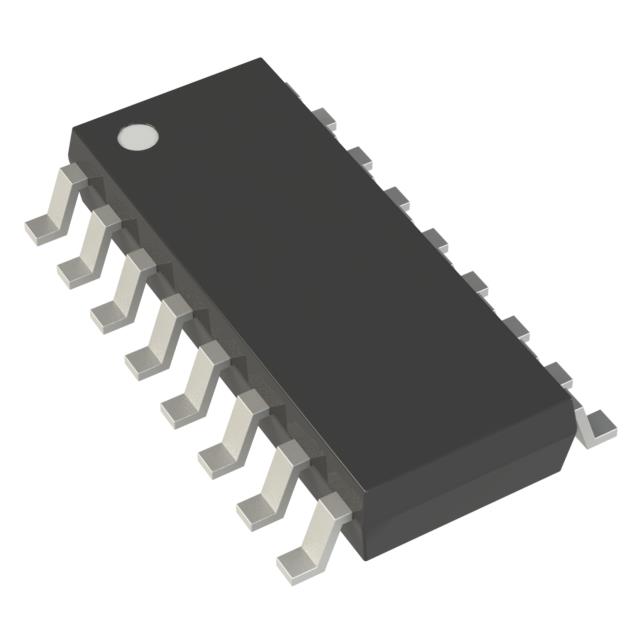

| Package / Case | 14-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Frequency | - |
| Type | CCFL Controller |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 6V ~ 27V |
| Supplier Device Package | 14-SOIC |
| Dimming | Yes |
| Current - Output Source/Sink | - |
