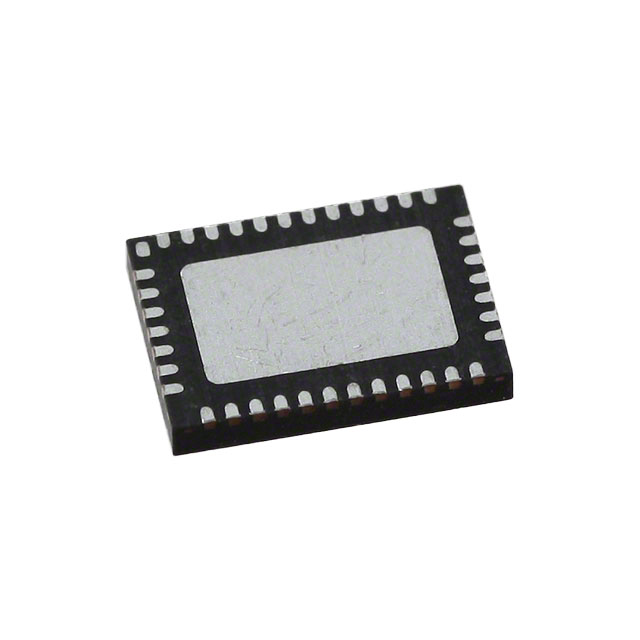

LX2260ILQ-TR
IC LED DRVR CTRL PWM 500MA 38QFNManufacturer: Microsemi Corporation
Categories: LED Drivers
Quality Control: Learn More
The Microsemi Corporation LX2260ILQ-TR is a versatile DC-DC controller designed for advanced LED driving applications. This device features four independent outputs capable of both step-down (buck) and step-up (boost) conversion, enabling flexible power management for diverse illumination systems. It supports 500mA output current per channel and offers both analog and PWM dimming control for precise light intensity adjustment. Operating at a switching frequency of 670kHz, the LX2260ILQ-TR is suitable for compact designs. The component is AEC-Q100 qualified and designed for automotive grade applications, ensuring reliability in demanding environments. Its 38-QFN (5x7) exposed pad package is designed for surface mounting, and it operates within a temperature range of -40°C to 85°C. The supply voltage range is from 6V to 28V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 38-VFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 670kHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | - |
| Current - Output / Channel | 500mA |
| Internal Switch(s) | No |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 38-QFN (5x7) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 28V |
| Grade | Automotive |
| Qualification | AEC-Q100 |
