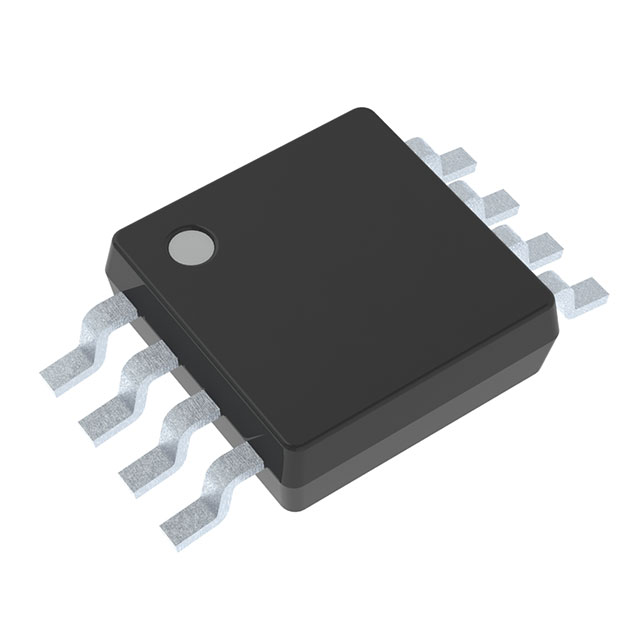

LX1992CDU-TR
IC LED DRVR CTRL PWM 150MA 8MSOPManufacturer: Microsemi Corporation
Categories: LED Drivers
Quality Control: Learn More
Microsemi Corporation's LX1992CDU-TR is a single-output DC-DC controller designed for LED driving applications, specifically within backlight systems. This component features an integrated boost topology for stepping up voltage and offers both analog and PWM dimming control for precise brightness adjustment. With a maximum output current capability of 150mA per channel, it is suitable for driving standard LED loads. The device operates from a supply voltage range of 1.6V to 6V, making it versatile for various power architectures. Housed in an 8-MSOP package, the LX1992CDU-TR is designed for surface mounting. Its operating temperature range is 0°C to 70°C. This part is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | - |
| Type | DC DC Controller |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 150mA |
| Internal Switch(s) | No |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 8-MSOP |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 1.6V |
| Voltage - Supply (Max) | 6V |
