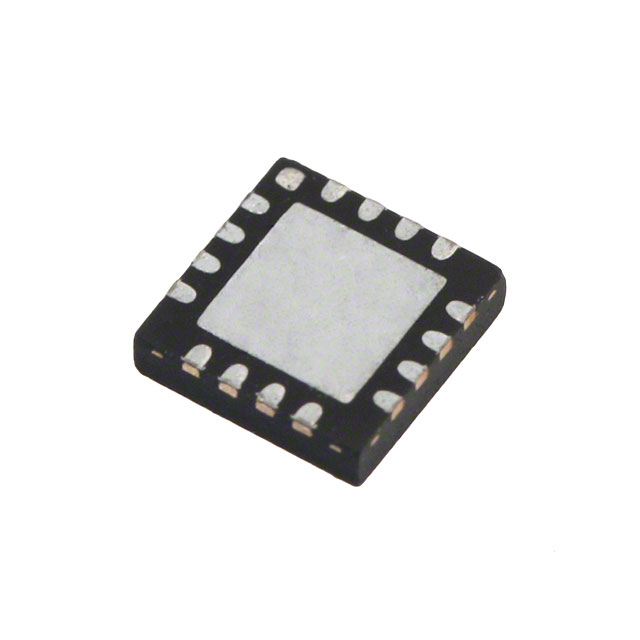

LX1991ILQ
IC LED DRVR LIN DIM 30MA 16MLPQManufacturer: Microsemi Corporation
Categories: LED Drivers
Quality Control: Learn More
Microsemi Corporation's LX1991ILQ is a 6-output linear LED driver featuring both analog and PWM dimming capabilities. Designed for precise control, each channel delivers up to 30mA. This device integrates internal switches, simplifying external component requirements. The LX1991ILQ operates from a 4.5V to 5.5V supply range and is housed in a compact 16-MLPQ (4x4) package with an exposed pad, suitable for surface mount applications. Its operating temperature range is -40°C to 85°C (TJ). This component is utilized in applications requiring efficient and accurate LED illumination control.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-VQFN Exposed Pad |
| Voltage - Output | 3V |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Frequency | - |
| Type | Linear |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Applications | - |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | Yes |
| Topology | - |
| Supplier Device Package | 16-MLPQ (4x4) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 5.5V |
