LXMG221W-0700034-D0
LED DRIVER CC AC/DC 14-48V 700MAManufacturer: Microsemi Corporation
Categories: LED Drivers
Quality Control: Learn More

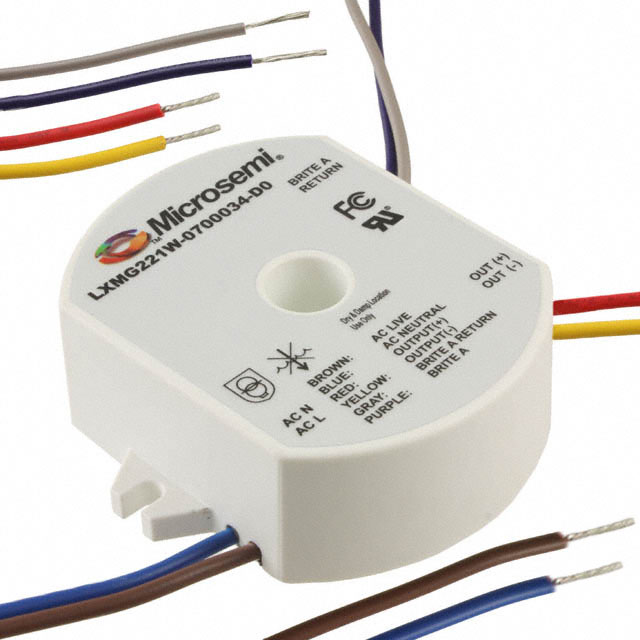

Microsemi Corporation LXMG221W-0700034-D0 is a 34W constant current LED driver. This AC/DC converter topology features one output with a maximum current of 700mA and an adjustable output voltage range of 14-48V. The device operates from a 90-305VAC input and offers 90% efficiency. Integrated protection features include OTP (Over-Temperature Protection), OVP (Over-Voltage Protection), and SCP (Short-Circuit Protection). Its robust design is rated IP66, making it suitable for demanding environments. The LXMG221W-0700034-D0 is designed for applications requiring reliable LED illumination and is commonly found in industrial lighting, architectural lighting, and signage. The unit measures 3.07" L x 3.15" W x 1.02" H (78.0mm x 80.0mm x 26.0mm) and utilizes wire lead termination. It is approved by CE, cUL, EN, and UL.
Additional Information
Series: LXMG221W-0700034-D0 (34W)RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | OTP, OVP, SCP |
| Packaging | Bulk |
| Size / Dimension | 3.07"" L x 3.15"" W x 1.02"" H (78.0mm x 80.0mm x 26.0mm) |
| Voltage - Output | 14 ~ 48V |
| Type | Constant Current |
| Operating Temperature | -30°C ~ 70°C |
| Termination Style | Wire Leads |
| Voltage - Input (Max) | 305VAC |
| Approval Agency | CE, cUL, EN, UL |
| Ratings | IP66 |
| Efficiency | 90% |
| Topology | AC DC Converter |
| Current - Output (Max) | 700mA |
| Dimming | Analog |
| Voltage - Input (Min) | 90VAC |
| Power (Watts) | 34 W |
| Number of Outputs | 1 |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

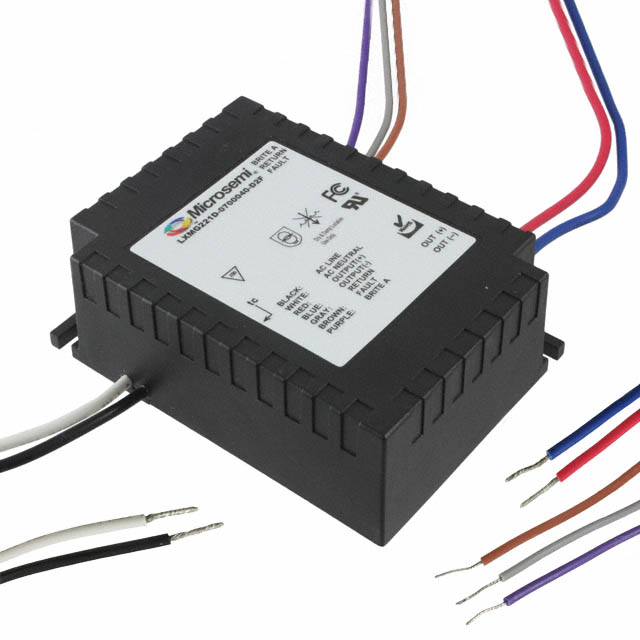

LXMG221D-0700040-D2F
