SP-450-035-03
LCD MODULE 5 DIG 5 X 1 PASSIVEManufacturer: Microsemi Corporation
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More

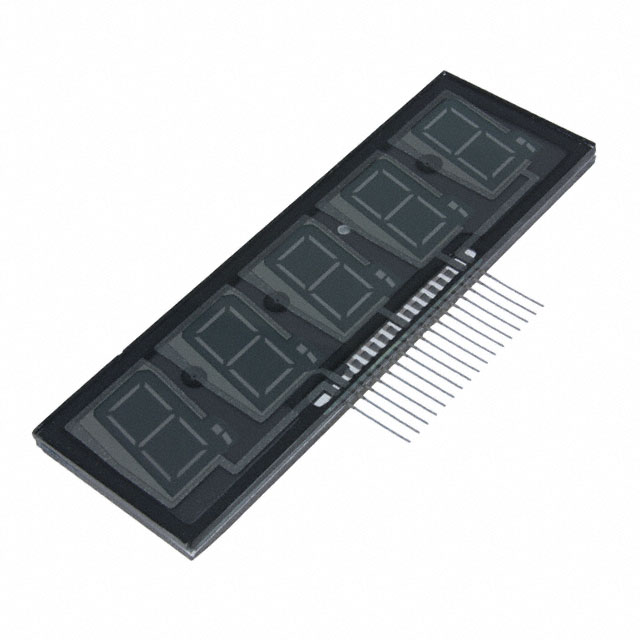

Microsemi Corporation SP-450-035-03 is a passive plasma display module featuring a 5-digit, 7-segment character format. The display offers a 5 x 1 character arrangement with individual character dimensions of 25.40mm height and 12.70mm width. This component operates without a backlight, presenting black background with no specified text color. Its dimensions are 152.02mm in length, 51.43mm in width, and 6.83mm in height, with a viewing area of 130.05mm x 48.90mm. Power requirements range from 165V to 200V. The operating temperature range is 0°C to 70°C. This display module is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | Plasma |
| Display Mode | Passive |
| Backlight | Without Backlight |
| Interface | - |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 165V ~ 200V |
| Viewing Area | 130.05mm L x 48.90mm W |
| Character Size | 25.40mm H x 12.70mm W |
| Display Format | 5 x 1 |
| Character Format | 7-Segment |
| Dot Size | - |
| Outline L x W x H | 152.02mm x 51.43mm x 6.83mm |
| Text Color | - |
| Background Color | Black |
| Number of Characters | 5.0 |
Request a Quote
Clients Also Buy

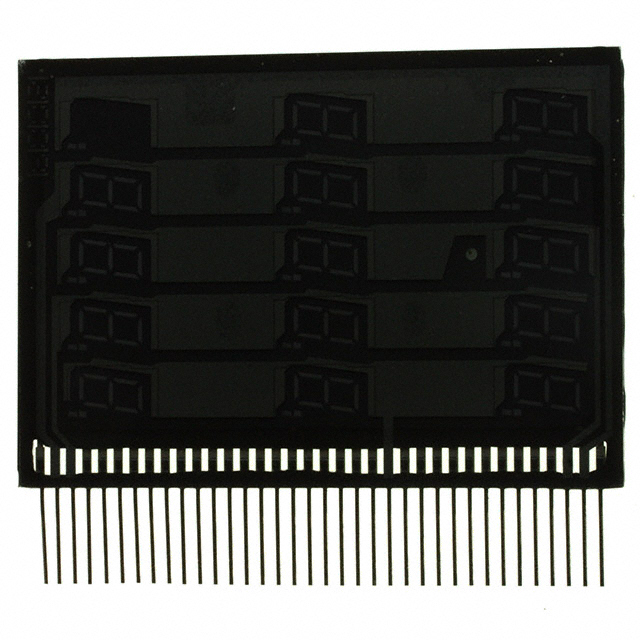

SP-450-033-03
LCD MODULE 14 DIG 5 X 3 PASSIVE

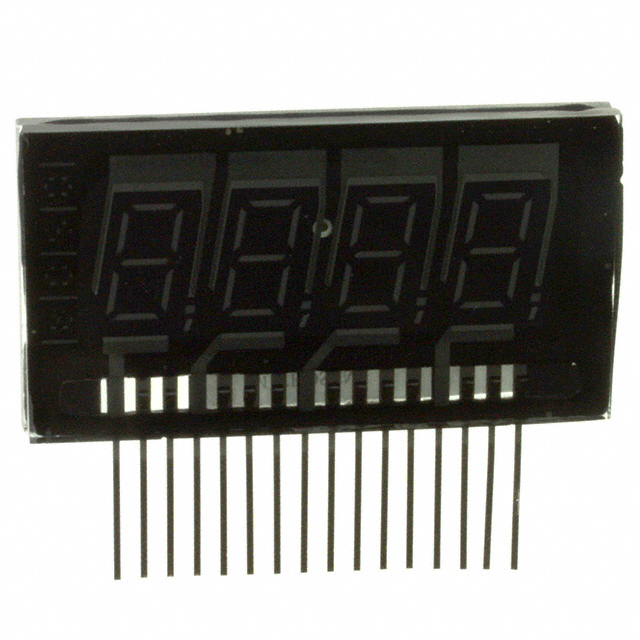

SP-450-037
