APTGFQ25H120T2G

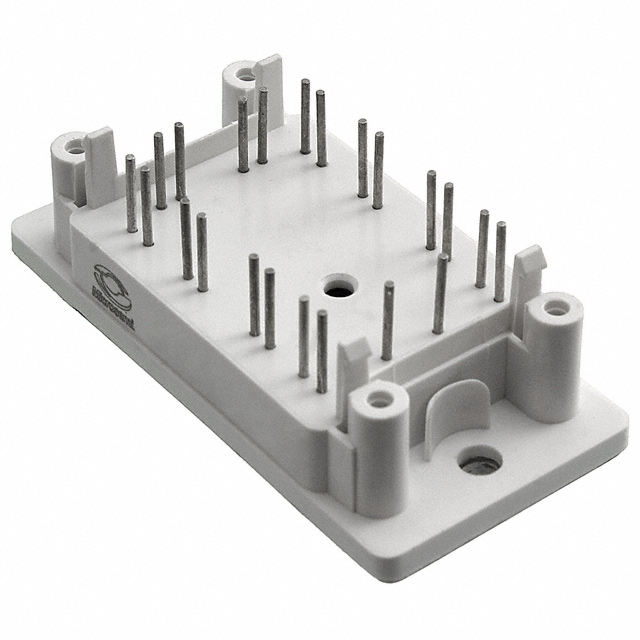

IGBT MODULE 1200V 40A 227W SP2Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More
IGBT Module NPT and Fieldstop Full Bridge 1200 V 40 A 227 W Through Hole SP2
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP2 |
| Mounting Type | Through Hole |
| Input | Standard |
| Configuration | Full Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 25A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP2 |
| IGBT Type | NPT and Fieldstop |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 227 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.02 nF @ 25 V |
