APTGF90DH60T3G

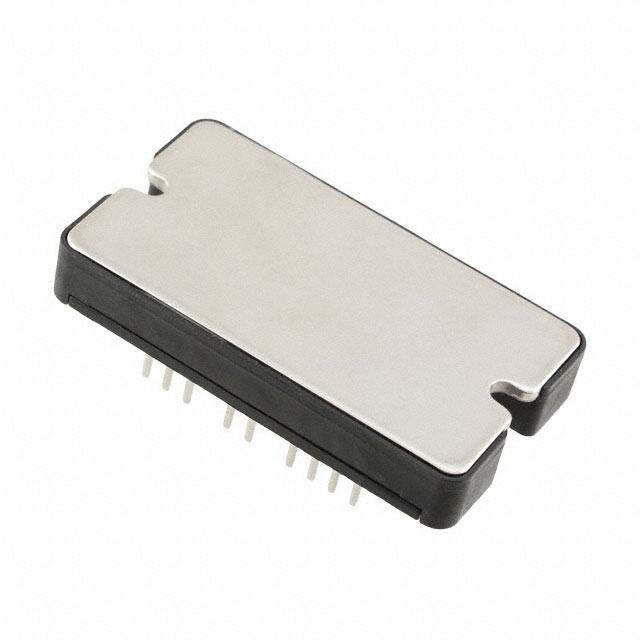

IGBT MODULE 600V 110A 416W SP3Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More
Microsemi Corporation's APTGF90DH60T3G is a 600V, 110A NPT asymmetric IGBT module with a maximum power dissipation of 416W. This module features a chassis mount design within the SP3 package. It offers a Vce(on) of 2.5V at 15V Vge and 100A Ic, with an input capacitance (Cies) of 4.3 nF at 25V. The module includes an integrated NTC thermistor for thermal management. This component is suitable for applications requiring high voltage and current switching, commonly found in industrial motor drives, power factor correction, and uninterruptible power supplies.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Asymmetrical Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 100A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 110 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 416 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 4.3 nF @ 25 V |
