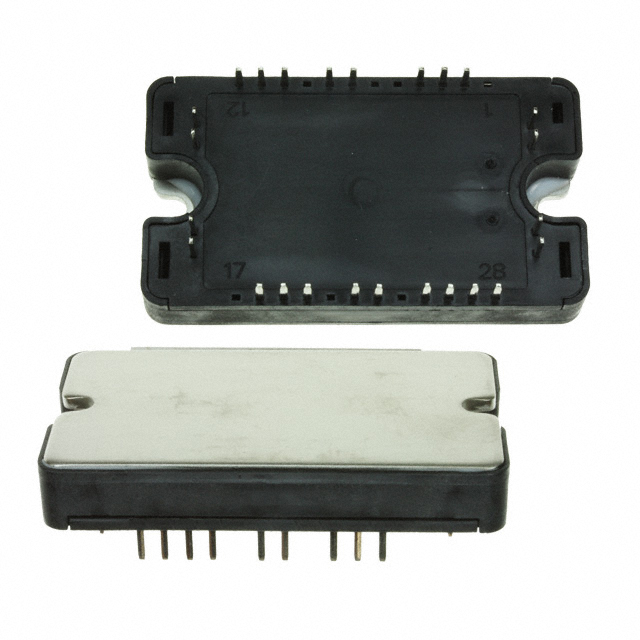

APTGF50TL60T3G
IGBT MODULE 600V 65A 250W SP3Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More
Microsemi Corporation APTGF50TL60T3G is an IGBT module featuring NPT technology for three-level inverter configurations. This robust module is rated for 600V and a continuous collector current of 65A, with a maximum power dissipation of 250W. Designed for demanding applications, it offers a low Vce(on) of 2.45V at 15V Vge and 50A Ic. The module incorporates an integrated NTC thermistor for thermal monitoring. Its input capacitance (Cies) is 2.2 nF at 25V. The APTGF50TL60T3G is suitable for chassis mounting and operates across a wide temperature range of -55°C to 150°C (TJ). Industries such as industrial power supplies, motor drives, and renewable energy systems commonly utilize this component.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP3 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Level Inverter |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 50A |
| NTC Thermistor | Yes |
| Supplier Device Package | SP3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 65 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 250 W |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 2.2 nF @ 25 V |
