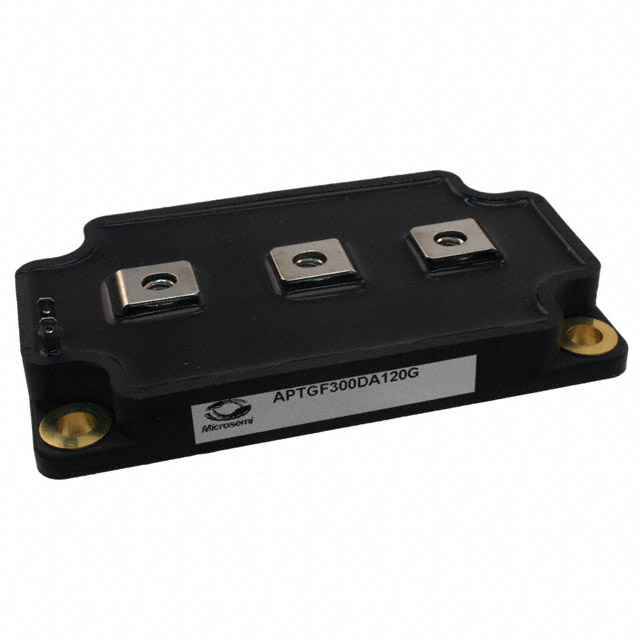

APTGF300DA120G
IGBT MODULE 1200V 400A 1780W SP6Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More
The Microsemi Corporation APTGF300DA120G is an NPT IGBT module designed for high-power applications. This single-configuration module offers a 1200V collector-emitter breakdown voltage and a maximum collector current of 400A. With a maximum power dissipation of 1780W, it is suitable for demanding environments. The module features a low Vce(on) of 3.9V at 15V gate-emitter voltage and 300A collector current, ensuring efficient operation. Input capacitance (Cies) is rated at 21nF at 25V. The APTGF300DA120G utilizes the SP6 package for chassis mounting, facilitating robust thermal management. This component is commonly employed in industrial motor drives, renewable energy systems, and power factor correction circuits.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Single |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 400 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 1780 W |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 21 nF @ 25 V |
