APTGF300A120D3G
IGBT MODULE 1200V 420A 2100W D3Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More

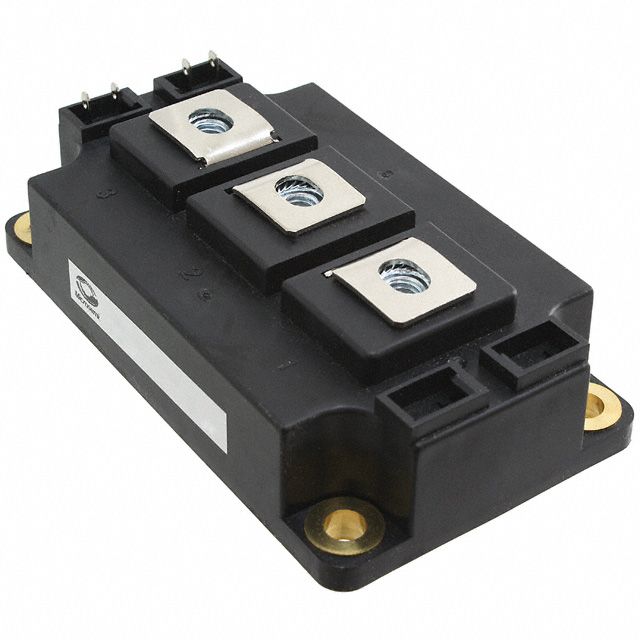

Microsemi Corporation APTGF300A120D3G is an NPT IGBT module configured as a half-bridge. This component features a 1200 V collector-emitter breakdown voltage and a maximum collector current of 420 A. The module delivers 2100 W of power handling capability with a low Vce(on) of 3.7 V at 15 V gate-emitter voltage and 300 A collector current. Input capacitance (Cies) is rated at 19 nF at 25 V. The device is supplied in a D3 module package for chassis mounting, suitable for high-power applications in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D-3 Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 300A |
| NTC Thermistor | No |
| Supplier Device Package | D3 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 420 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 2100 W |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 19 nF @ 25 V |
