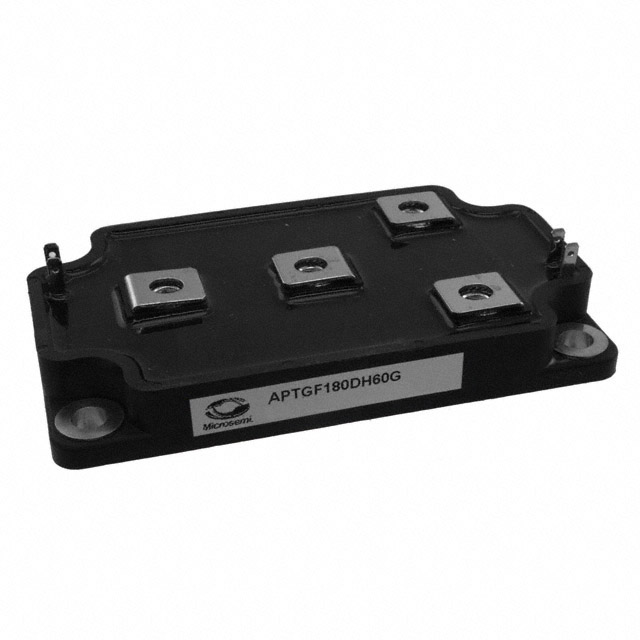

APTGF180DH60G
IGBT MODULE 600V 220A 833W SP6Manufacturer: Microsemi Corporation
Categories: IGBT Modules
Quality Control: Learn More
Microsemi Corporation APTGF180DH60G is a 600V NPT Asymmetrical Bridge IGBT Module with a maximum collector current of 220A and a power dissipation of 833W. This module features a low collector-emitter saturation voltage (Vce(on)) of 2.5V at 15V gate-emitter voltage and 180A collector current. The input capacitance (Cies) is 8.6 nF at 25V. Designed for chassis mounting, the APTGF180DH60G is supplied in the SP6 package. This component is utilized in industrial applications requiring high-power switching, such as motor drives and uninterruptible power supplies.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SP6 |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Asymmetrical Bridge |
| Operating Temperature | - |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 180A |
| NTC Thermistor | No |
| Supplier Device Package | SP6 |
| IGBT Type | NPT |
| Current - Collector (Ic) (Max) | 220 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 833 W |
| Current - Collector Cutoff (Max) | 300 µA |
| Input Capacitance (Cies) @ Vce | 8.6 nF @ 25 V |
