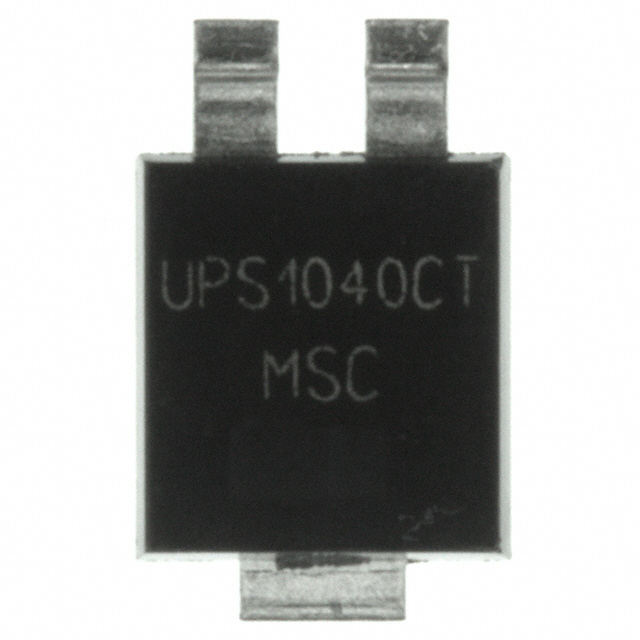

UPS1040CTE3
DIODE ARR SCHOT 40V POWERMITE3Manufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation's UPS1040CTE3 is a Schottky diode array featuring a single pair of common cathode configurations. This surface mount component offers a maximum DC reverse voltage of 40V and a forward voltage of 570mV at 10A. The device boasts a 10A average rectified current per diode and a reverse leakage of 150 µA @ 35V. Designed for efficient operation, it falls within the fast recovery speed category. The UPS1040CTE3 is housed in a Powermite®3 package, supplied on tape and reel. It is suitable for applications in power management, industrial controls, and automotive electronics. Operating temperature range is -55°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Powermite®3 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | Powermite 3 |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 10 A |
| Current - Reverse Leakage @ Vr | 150 µA @ 35 V |
