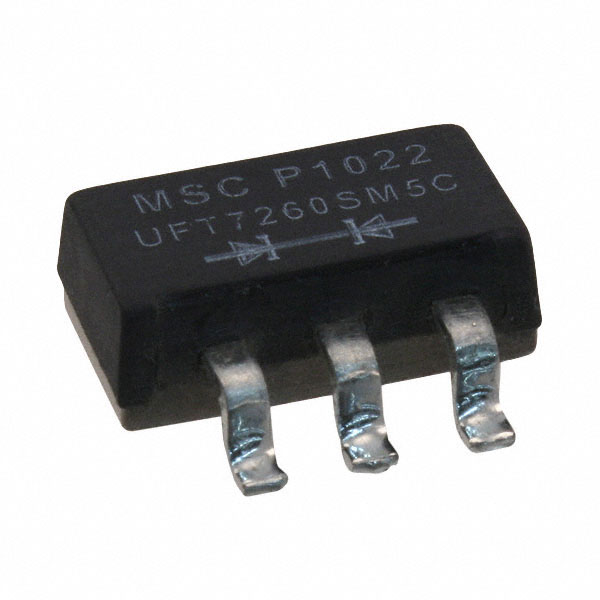

UFT7260SM5C
DIODE MODULE GP 600V 35A SM5Manufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation's UFT7260SM5C is a dual diode module featuring a common cathode configuration. This component offers a repetitive peak reverse voltage (Vrrm) of 600V and an average forward current (Io) of 35A per diode. The forward voltage drop (Vf) is rated at a maximum of 1.35V at the maximum forward current. Reverse leakage current is minimal, specified at 25 µA at 600V. With a reverse recovery time (trr) of 75 ns, this device falls under the fast recovery category. Designed for chassis mounting within a SM5 package, the UFT7260SM5C is suitable for applications in industrial power supplies, motor control, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 35A |
| Supplier Device Package | SM5 |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 35 A |
| Current - Reverse Leakage @ Vr | 25 µA @ 600 V |
