UFT20140
DIODE MODULE GP 400V 100AManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More

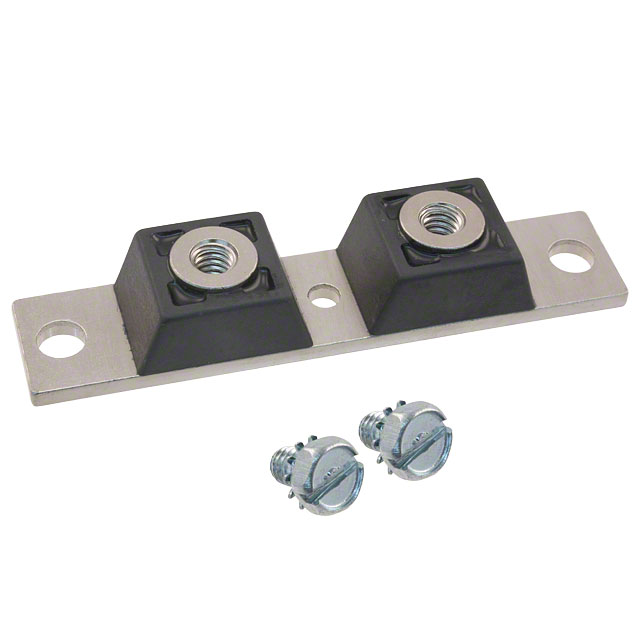

Microsemi Corporation UFT20140 is a high-performance diode module featuring a common cathode configuration with two diodes. This component is rated for a maximum DC reverse voltage of 400V and an average rectified current of 100A per diode. The forward voltage drop (Vf) is a maximum of 1.25V at 100A, and the reverse leakage current is 50 µA at 400V. With a typical reverse recovery time (trr) of 70 ns, it qualifies as a fast recovery diode. The UFT20140 is supplied in a screw mount module package, suitable for demanding power applications. This device finds utility in industrial power supplies, motor control systems, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Screw Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 70 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 100A |
| Supplier Device Package | Module |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 100 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 400 V |
