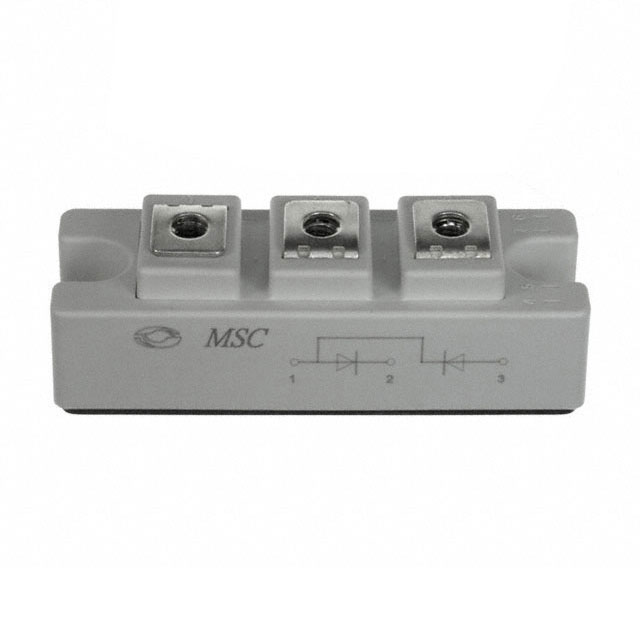

MSCD200-12
DIODE MODULE GP 1200V 200A SD2Manufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation's MSCD200-12 is a robust diode module featuring a single pair of diodes connected in series within a D2 package. This component is engineered for high-power applications, boasting a maximum DC Reverse Voltage (Vr) of 1200 V and an average rectified current (Io) capability of 200A per diode. The forward voltage drop (Vf) is specified at 1.3 V at a forward current (If) of 300 A. With a standard recovery speed exceeding 500 ns, this chassis-mount module is suitable for demanding industrial power control, motor drives, and power supply designs. The reverse leakage current is rated at 9 mA at 1200 V. Supplied in bulk packaging, the MSCD200-12 offers reliable performance in a standard technology configuration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | D2 |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Supplier Device Package | SD2 |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 300 A |
| Current - Reverse Leakage @ Vr | 9 mA @ 1200 V |
