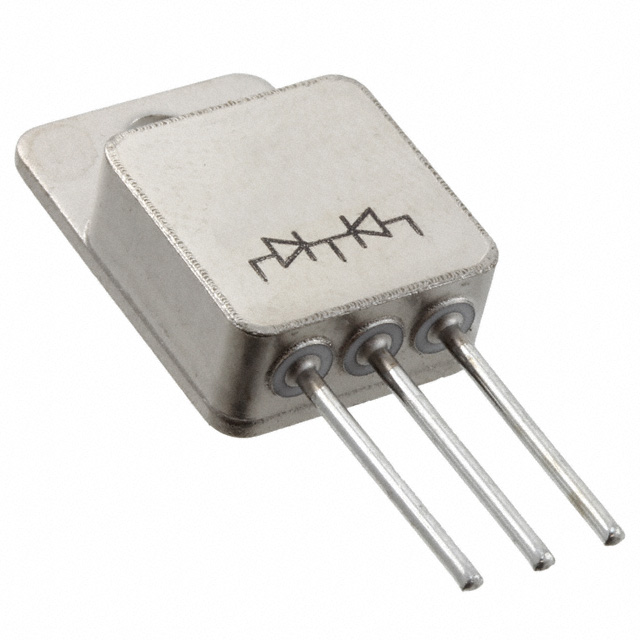

JANTX1N6660
DIODE ARR SCHOTT 45V 15A TO254AAManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 45 V 15A Through Hole TO-254-3, TO-254AA (Straight Leads)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-254-3, TO-254AA (Straight Leads) |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-254AA |
| Operating Temperature - Junction | 150°C (Max) |
| Grade | Military |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V |
| Qualification | MIL-PRF-19500/608 |
