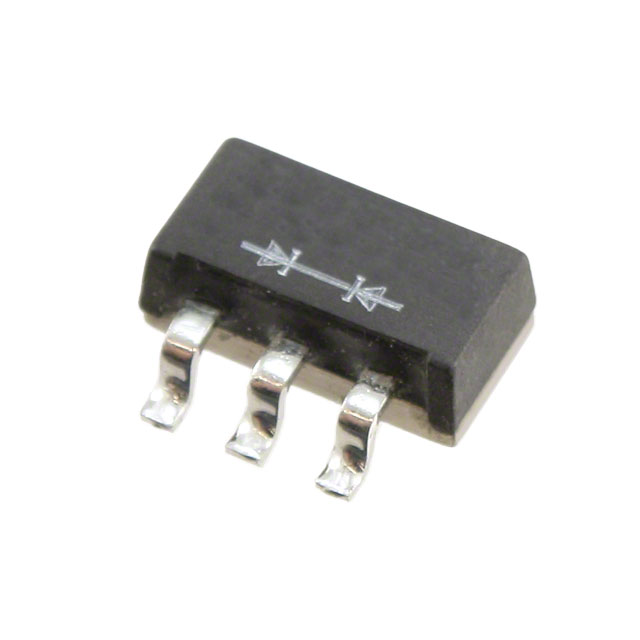

FST80150SM5C
DIODE ARRAY SCHOTTKY 150V 40AManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation FST80150SM5C is a Schottky diode array featuring a common cathode configuration. This surface mount device offers a maximum DC reverse voltage of 150V and an average rectified current of 40A per diode. The forward voltage drop at 40A is a maximum of 860mV, with a reverse leakage current of 2mA at 150V. The component is housed in a 3-SMD module package and is supplied in bulk. Its fast recovery time, less than 500ns for currents greater than 200mA, makes it suitable for power supply and power switching applications in industries such as industrial automation and telecommunications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3-SMD Module |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Supplier Device Package | - |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 860 mV @ 40 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 150 V |
