FST160100D
DIODE MOD SCHOTT 100V 80A TO249Manufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More

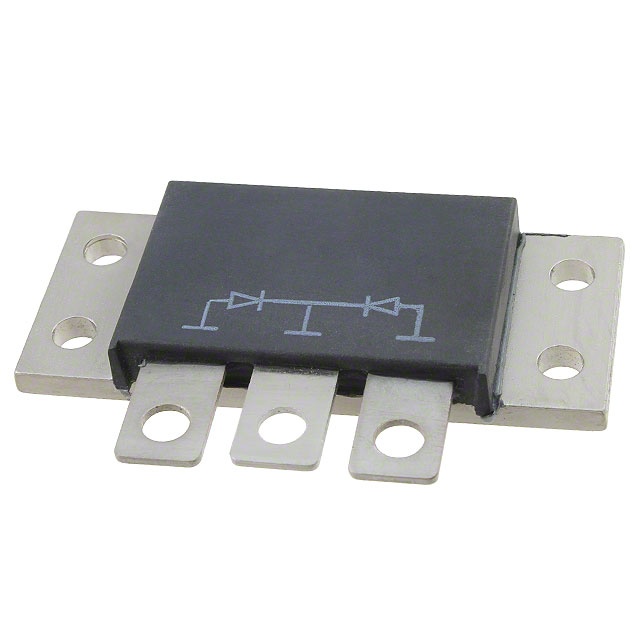

Microsemi Corporation FST160100D is a Schottky Diode Array featuring a 1 Pair Series Connection configuration. This component is rated for a maximum DC Reverse Voltage (Vr) of 100 V and an average rectified current (Io) per diode of 80 A. The forward voltage (Vf) is specified at a maximum of 960 mV at 80 A. Reverse leakage current is measured at 2 mA at 100 V. Designed for robust performance, this diode array is housed in a TO-249AA Isolated Base package, enabling chassis mounting. Its fast recovery time, characterized as less than 500ns for currents above 200mA, makes it suitable for power supply and motor control applications across various industrial sectors. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-249AA Isolated Base |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 80A |
| Supplier Device Package | TO-249 |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 960 mV @ 80 A |
| Current - Reverse Leakage @ Vr | 2 mA @ 100 V |
