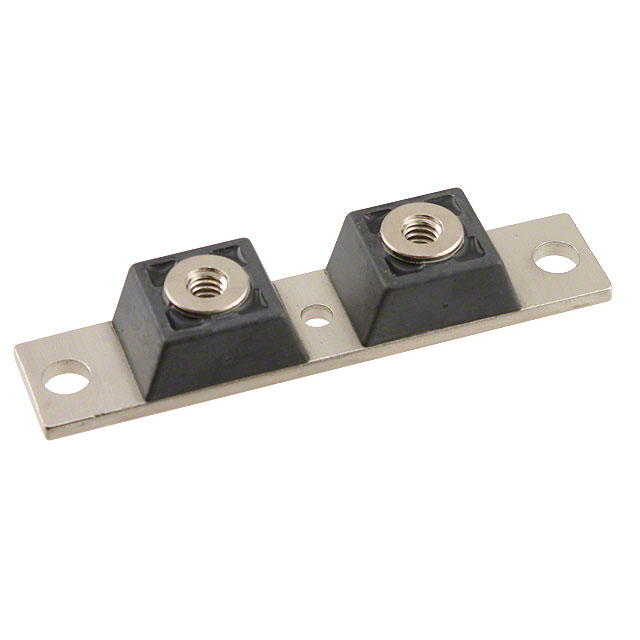

CPT60145
DIODE MOD SCHOTT 45V 300A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation's CPT60145 is a Schottky diode array featuring a common cathode configuration with a 45V reverse voltage rating and a 300A average rectified current per diode. This component presents a low forward voltage drop of 550mV at a 300A forward current. The CPT60145 is designed for chassis mounting with its MD3CC package, commonly referred to as a Twin Tower. It exhibits a reverse leakage current of 21mA at 45V and is characterized by its fast recovery time, typically less than 500ns. This diode array is suitable for high-power applications in industries such as industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 300A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 300 A |
| Current - Reverse Leakage @ Vr | 21 mA @ 45 V |
